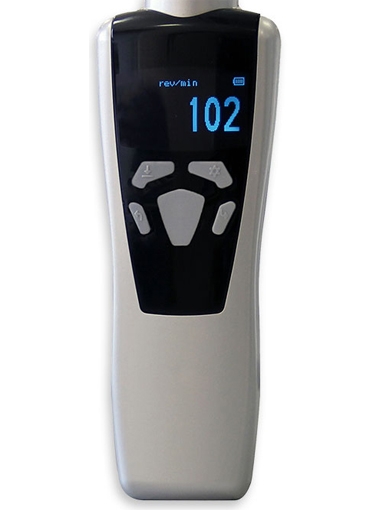

Shimpo DT-2100 Tachometer with USB Output, Combination Contact / Non-Contact
The Shimpo DT-2100 Tachometer with USB Output, Combination Contact / Non-Contact is an advanced combination contact / non-contact hand-held tachometer. The DT-2100 features data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. It features a backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode. Additional display modes unique to the DT-2100 is the "Needle Sweep" and Bar Graph" offers the user a choice of how to view the data. The display can also be inverted to optimize the viewing angle.
Data Logging with Continous, Single Unit or Statistics modes View data and statistics on tachometer display or with optional Windows software Built-in Memory with USB Data Output Powerful laser for non-contact measurement 2 to 13.1 (5 to 400 cm) Non-Contact length measuring mode (requires reflective tape or edge of roller) Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc On-screen hi-lo limits for pass/fail analysis Auto-detection of contact adapter Reversible Display 1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod
Range
6-99,999 rpm Non-contact 0.8-25,000 rpm Contact
Accuracy
±0.006% of reading ±1 least significant digit
Measuring Units
Speed
Memory
Continuous Mode
Laser Sensing Distance
2 inches up to 13.1 Feet (5 to 400 cm)
Display
Graphical Blue Light OLED, reversible
Display Update Time
Selectable
Power
2 AA 1.5V batteries or USB
Battery Life
Approx
Temperature Limits
32º - 113ºF (0º - 45ºC) Non-Condensing
Construction
Polycarbonate
Dimensions
6.1” x 2.2” x 1.4” (155 x 55 x 35 mm)
Product Weight
4.14 oz (125 g)
Approvals
CE, RoHS, PSC, FDA, IEC/EN 60825-1
Warranty
2-Year
Included Accessories
2 cone adapters, funnel adapter, 3½” extension shaft, surface speed wheel (6” circumference), 2 AA batteries, contact adapter and carrying case
More Information
Product Specifications
Range
6-99,999 rpm Non-contact 0.8-25,000 rpm Contact
Accuracy
±0.006% of reading ±1 least significant digit
Measuring Units
Speed
Memory
Continuous Mode
Laser Sensing Distance
2 inches up to 13.1 Feet (5 to 400 cm)
Display
Graphical Blue Light OLED, reversible
Display Update Time
Selectable
Power
2 AA 1.5V batteries or USB
Battery Life
Approx
Temperature Limits
32º - 113ºF (0º - 45ºC) Non-Condensing
Construction
Polycarbonate
Dimensions
6.1” x 2.2” x 1.4” (155 x 55 x 35 mm)
Product Weight
4.14 oz (125 g)
Approvals
CE, RoHS, PSC, FDA, IEC/EN 60825-1
Warranty
2-Year
Included Accessories
2 cone adapters, funnel adapter, 3½” extension shaft, surface speed wheel (6” circumference), 2 AA batteries, contact adapter and carrying case
Product Features
Data Logging with Continous, Single Unit or Statistics modes View data and statistics on tachometer display or with optional Windows software Built-in Memory with USB Data Output Powerful laser for non-contact measurement 2 to 13.1 (5 to 400 cm) Non-Contact length measuring mode (requires reflective tape or edge of roller) Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc On-screen hi-lo limits for pass/fail analysis Auto-detection of contact adapter Reversible Display 1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod
