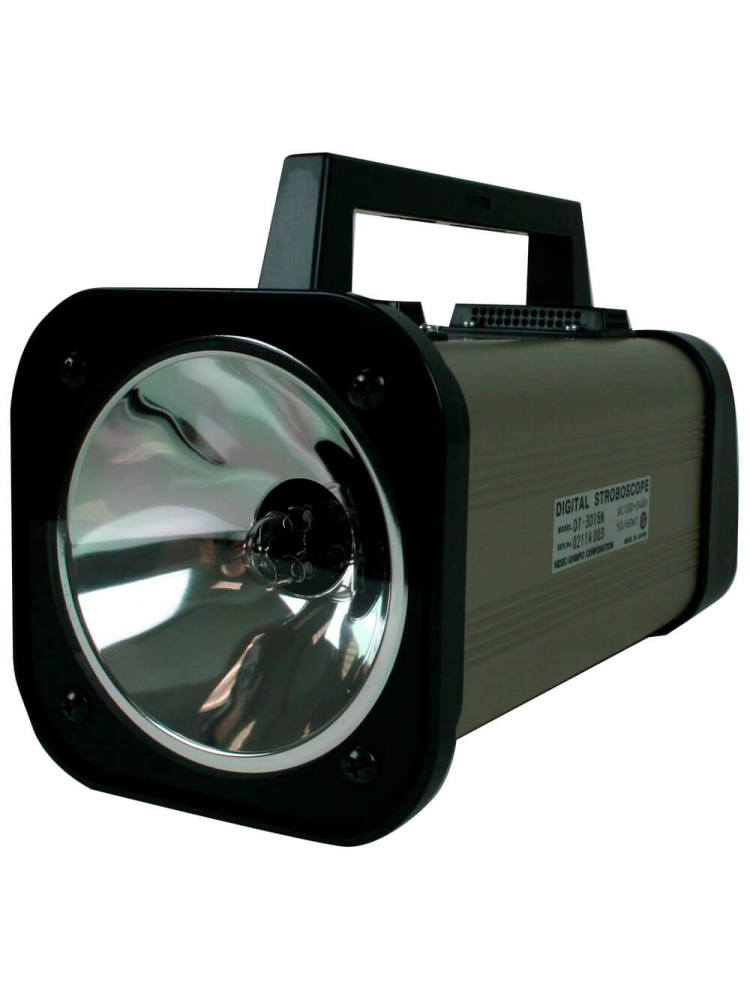

Shimpo DT-3015N Portable Xenon Stroboscope with Rechargeable Battery
The Shimpo DT-3015N Portable Xenon Stroboscope with Rechargeable Battery is a rugged, battery-powered xenon stroboscope designed for non-contact RPM measurement, inspection, and observation of moving parts by "freezing" or "slowing down" the motion. The Shimpo DT-3015N Portable Xenon Stroboscope with Rechargeable Battery provides power flexibility as in addition to its internal rechargeable battery it can operate from AC power.
Internal, fast-charge rechargeable battery Aluminum construction provides exceptional durability High polish and focused reflector creates a uniform light External trigger allows unit to be automatically synchronized with equipment Light emission auto-off feature from 1 - 120 min enables extended battery operatio Phase shift, set in degrees or ms, allows visual analysis of rotating/reciprocating objects Save up to 5 user configurations to enable switching quickly between machinery Synchronous output enables strobe to drive other strobes Easy tri-pod (optional) or permanent mounting with integral mounting thread Specify IEC-C13-EURO for use with a EURO Type Mains Connection NIST Traceable Calibration Certificate is OPTIONAL
Flashing Range
40.0 - 35,000 fpm (flashes per minute)
Accuracy
±0.05 % of reading
Resolution
30.0 to 5000.0
Lux Rating
8" (20 cm) Distance = 1950 lx @ 1500 fpm, 2000 lx @ 6000 fpm with 8" (203 mm) irradiation diameter. 20" (50 cm) Distance = 725 lx @ 1500 fpm, 850 lx @ 6000 fpm with 12" (305 mm) irradiation diameter.
Lamp Lifetime
Typ.1200 hours at 1500 fpm
Display
6-digit, 7 segment red LED
Flash Duration
30 μsec
Phase Shift
0 to 359˚ set by 0.1˚ resolution; 0.00 to 999.99 msec set by 0.01 msec resolution, 1000.0 to 1994.4 msec set by 0.1 msec resolution
Power Requirement
100 to 240 VAC 50/60Hz
Battery
NiMH battery- Approximate 2 hour time to full charge
Battery Life
Approx. 3 hours (when the emission count is 1500 FPM)
Input Signal
H level
Input Signal Range
27 to 35,020 fpm (1 fpm resolution) with available delay setting in degree or msec
Sensor Power Supply
DC 12 VDC 40 mA
Temperature Limits
32 to 104°F (0 to 40°C)
Humidity Limits
35 to 85% RH (Non- condensing)
Product Weight
4.2 lbs (1.9 kg)
Approvals
RoHS
Warranty
1-Year
More Information
Product Specifications
Flashing Range
40.0 - 35,000 fpm (flashes per minute)
Accuracy
±0.05 % of reading
Resolution
30.0 to 5000.0
Lux Rating
8" (20 cm) Distance = 1950 lx @ 1500 fpm, 2000 lx @ 6000 fpm with 8" (203 mm) irradiation diameter. 20" (50 cm) Distance = 725 lx @ 1500 fpm, 850 lx @ 6000 fpm with 12" (305 mm) irradiation diameter.
Lamp Lifetime
Typ.1200 hours at 1500 fpm
Display
6-digit, 7 segment red LED
Flash Duration
30 μsec
Phase Shift
0 to 359˚ set by 0.1˚ resolution; 0.00 to 999.99 msec set by 0.01 msec resolution, 1000.0 to 1994.4 msec set by 0.1 msec resolution
Power Requirement
100 to 240 VAC 50/60Hz
Battery
NiMH battery- Approximate 2 hour time to full charge
Battery Life
Approx. 3 hours (when the emission count is 1500 FPM)
Input Signal
H level
Input Signal Range
27 to 35,020 fpm (1 fpm resolution) with available delay setting in degree or msec
Sensor Power Supply
DC 12 VDC 40 mA
Temperature Limits
32 to 104°F (0 to 40°C)
Humidity Limits
35 to 85% RH (Non- condensing)
Product Weight
4.2 lbs (1.9 kg)
Approvals
RoHS
Warranty
1-Year
Product Features
Internal, fast-charge rechargeable battery Aluminum construction provides exceptional durability High polish and focused reflector creates a uniform light External trigger allows unit to be automatically synchronized with equipment Light emission auto-off feature from 1 - 120 min enables extended battery operatio Phase shift, set in degrees or ms, allows visual analysis of rotating/reciprocating objects Save up to 5 user configurations to enable switching quickly between machinery Synchronous output enables strobe to drive other strobes Easy tri-pod (optional) or permanent mounting with integral mounting thread Specify IEC-C13-EURO for use with a EURO Type Mains Connection NIST Traceable Calibration Certificate is OPTIONAL
