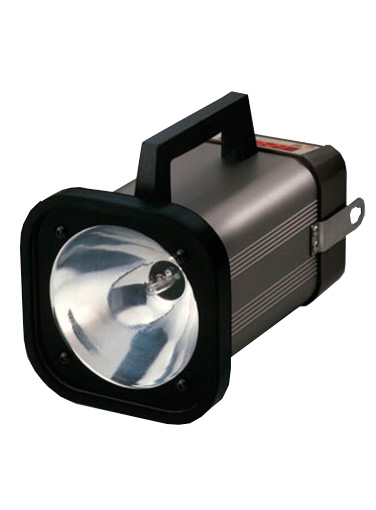

Shimpo DT-311J Splash-Proof Stroboscope, 200 - 1,500 RPM / FPM
The Shimpo DT-311J Splash-Proof Stroboscope, 200 - 1,500 RPM / FPM is designed for use in the harshest manufacturing environments and meet the specifications of protection code IP65. They are designed for observing fast repeated motions and for determining RPM or inspection and observation of moving parts by "freezing" or "slowing down" the movement. The instrument can be triggered by means of an external sensor (power supply for the sensor is provided by the stroboscope). The flashes can be delayed either in time or in rotation angle.
Splash-Proof Digital Stroboscope LIMTED RANGE: 200-1,500 RPM/FPM Water & Dustproof housing (IP65) Hand-held or tripod operation Easy-to-read LED display Accepts external trigger input and provides synchronizing pulse output Phase shift for best view and flash photography Easy-to-operate controls
Flash Range
200-1,500 FPM
Accuracy
± 1 digit
Internal Signal Range
200 to 1,500
Delay Setter
Rotary Encoder
Display
4 digit, 10mm high Red LED
Divide Ratio
1/1, 1/2, 1/3, 1/4, 2/4 with shift
Input Signal
LO level 0-0.4 VDC / HI level 2.5 - 12 VDC -- or open collector (npn) pulse width 50us min
Input Impedance
47 ohms
Display Mode
Phase shift (degree), Tachometer
Flashtube
Xenon lamp, max 10 W at 1,5000 rpm
Operating Temp
0 to 40°
Power Requirements
115 V or 230 V AC (specify), 50/60 Hz, 30 VA
Dimensions
149w x 174h x 214d mm
Weight
4.2 lb (1.9 Kg)
Warranty
1 year
More Information
Product Specifications
Flash Range
200-1,500 FPM
Accuracy
± 1 digit
Internal Signal Range
200 to 1,500
Delay Setter
Rotary Encoder
Display
4 digit, 10mm high Red LED
Divide Ratio
1/1, 1/2, 1/3, 1/4, 2/4 with shift
Input Signal
LO level 0-0.4 VDC / HI level 2.5 - 12 VDC -- or open collector (npn) pulse width 50us min
Input Impedance
47 ohms
Display Mode
Phase shift (degree), Tachometer
Flashtube
Xenon lamp, max 10 W at 1,5000 rpm
Operating Temp
0 to 40°
Power Requirements
115 V or 230 V AC (specify), 50/60 Hz, 30 VA
Dimensions
149w x 174h x 214d mm
Weight
4.2 lb (1.9 Kg)
Warranty
1 year
Product Features
Splash-Proof Digital Stroboscope LIMTED RANGE: 200-1,500 RPM/FPM Water & Dustproof housing (IP65) Hand-held or tripod operation Easy-to-read LED display Accepts external trigger input and provides synchronizing pulse output Phase shift for best view and flash photography Easy-to-operate controls
