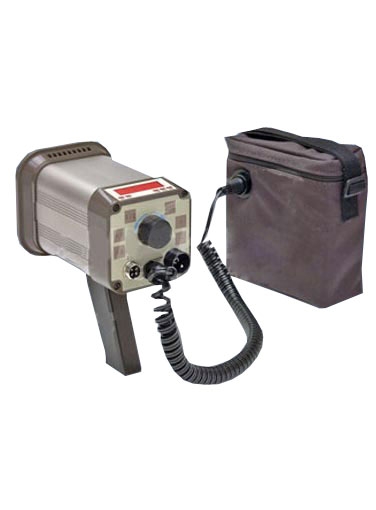

Shimpo DT-315AEB Digital Stroboscope, 40 - 35,000 RPM / FPM
The Shimpo DT-315AEB Digital Stroboscope, 40 - 35,000 RPM / FPM is a portable, highly stable and accurate, industrial-quality tools for non-contact RPM measurement, inspection and observation of moving parts by "freezing" or "slowing down" the action.
Highest accuracy and most stable flash rate Easy-to-read LED display Easy-to-operate controls Detachable pistol-grip handle Provides 12 V DC power for external sensors Accepts external trigger input and provides synchronizing pulse output Phase shift for best view and flash photography Flash rate control Instant double and half-rate flash selection for error-free reading
Flash Range
40-35,000 FPM
Accuracy
Internal Mode
Drift
±0.01% per degree C
Update Time
Internal Mode
Input Signal
LO level
Output Signal
Synchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance
Display & Rate
Divide or multiply by 2, selectable
Operating Temp
32-104° (0-40°C)
Display
5 digits, 10 mm high, red LED
Flashtube
Xenon, 10 W maximum
Flash Duration
10-30 µs
Sensor Power Supply
12 VDC ± 0.5V (50ma)
Power Requirements
115 V AC or 230 V AC Adapter or one (1) hour, internal, rechargeable 12 V battery or external 12 V DC
Phase Shift
0 - 359° with 1° resolution or 0 - 333 ms from 200 - 3,000 FPM
Input Impedance
10,000 ohms
Battery Life
3 hours at high flash rate
Weight
4.4 lbs. (2 kg)
Dimensions
4.7 x 4.7 x7.2" (120 x 120 x 183mm)
More Information
Product Specifications
Flash Range
40-35,000 FPM
Accuracy
Internal Mode
Drift
±0.01% per degree C
Update Time
Internal Mode
Input Signal
LO level
Output Signal
Synchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance
Display & Rate
Divide or multiply by 2, selectable
Operating Temp
32-104° (0-40°C)
Display
5 digits, 10 mm high, red LED
Flashtube
Xenon, 10 W maximum
Flash Duration
10-30 µs
Sensor Power Supply
12 VDC ± 0.5V (50ma)
Power Requirements
115 V AC or 230 V AC Adapter or one (1) hour, internal, rechargeable 12 V battery or external 12 V DC
Phase Shift
0 - 359° with 1° resolution or 0 - 333 ms from 200 - 3,000 FPM
Input Impedance
10,000 ohms
Battery Life
3 hours at high flash rate
Weight
4.4 lbs. (2 kg)
Dimensions
4.7 x 4.7 x7.2" (120 x 120 x 183mm)
Product Features
Highest accuracy and most stable flash rate Easy-to-read LED display Easy-to-operate controls Detachable pistol-grip handle Provides 12 V DC power for external sensors Accepts external trigger input and provides synchronizing pulse output Phase shift for best view and flash photography Flash rate control Instant double and half-rate flash selection for error-free reading
