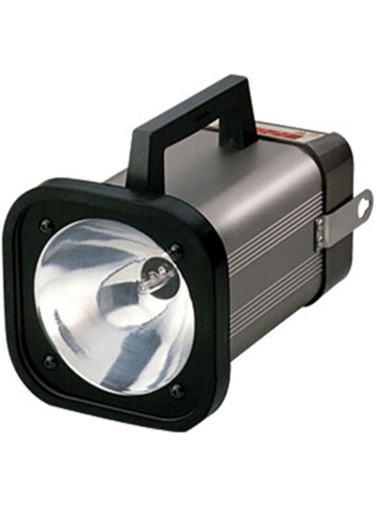

Shimpo DT-315P NEMA 4X Stroboscope for Harsh Usage
The Shimpo DT-315P NEMA 4X Stroboscope for Harsh Usage is a rugged, sealed NEMA 4X (IP65) Stroboscope suitable for working in areas without AC power. The DT-315P works just like the DT-315A battery operated strobe. Equipped with Phase shifting in angle of delay (0-359 degrees) and flash time delay, (0-300 mSEC) the DT-315P is engineered for checking timing and wear on rotating and reciprocating machinery. With its rugged, metal body and NiCd rechargeable battery, the DT-315P provides the maintenance and quality professional a rugged, accurate strobetach for inspection on presses, conveyers, gear reducers, chain drives, fuel injectors, paint spray patterns, and many other harsh environment, industrial applications.
Extruded aluminum, NEMA 4X construction: Extraordinary durability yields long service life Internal battery supply: Lightweight; enables easy portability Repeatable accuracy ( 0.01% of reading): Fully meets the strictest tolerances Phase shift (in degrees of delay time): Enables visual analysis of rotating/reciprocating objects through all points of motion/time/angle Flash timer control: Prolongs flash tube life Manual flash controller knob: Permits easy/accurate adjustments to flash rate Continuous duty cycle: Eliminates downtime waiting for unit to cool Highly polished focused reflector: Prevents "blind" viewing areas
Display
5 digit, 7 segment red LED (Character height 10mm)
Flashtube
Xenon lamp TFU-100B-A32
Flashtube Power
Max. 10W
Flashing Time
Approx. 30 µ sec
Power
Battery
Operating Temperature
32 to 104 ° F (0 to 40 °C)
Power Requirement
Power Plug & Cable for Recharging Battery Included
Dimensions
5.11" W x 6.22" H x 10.20" L (130 W x 158 H x 259 L mm)
Weight
4.6 lbs (2.1 kg)
Warranty
2 Years
Included Accessories
Input/Output signal plug, rechargeable battery with AC adapter, protective case
Internal Mode
Internal Mode
Flashing Range
60.0 ~ 3,000 FPM
Display Accuracy
±0.01%
Drift
± 0.01 (at 0 ~ 40 °C)
Phase Shift
Use +/- push buttons (360° in 6 seconds)
Display Update Time
0.2 sec approx
Output Signal
Approx. 12V
Other Functions
÷2. x2 Flashings, Phase shift adjustment
External Mode
External Mode
Flashings
Synchronous Mode
Delay Angle Setting Range
Delay Mode
Display
RPM, Synchronous mode
Display Accuracy
Synchronous mode
Update Time
1 per second
Input Signal
H Level
Sensor Power
Battery
Setter
Flashing, Delay angle
More Information
Product Specifications
Display
5 digit, 7 segment red LED (Character height 10mm)
Flashtube
Xenon lamp TFU-100B-A32
Flashtube Power
Max. 10W
Flashing Time
Approx. 30 µ sec
Power
Battery
Operating Temperature
32 to 104 ° F (0 to 40 °C)
Power Requirement
Power Plug & Cable for Recharging Battery Included
Dimensions
5.11" W x 6.22" H x 10.20" L (130 W x 158 H x 259 L mm)
Weight
4.6 lbs (2.1 kg)
Warranty
2 Years
Included Accessories
Input/Output signal plug, rechargeable battery with AC adapter, protective case
Internal Mode
Internal Mode
Flashing Range
60.0 ~ 3,000 FPM
Display Accuracy
±0.01%
Drift
± 0.01 (at 0 ~ 40 °C)
Phase Shift
Use +/- push buttons (360° in 6 seconds)
Display Update Time
0.2 sec approx
Output Signal
Approx. 12V
Other Functions
÷2. x2 Flashings, Phase shift adjustment
External Mode
External Mode
Flashings
Synchronous Mode
Delay Angle Setting Range
Delay Mode
Display
RPM, Synchronous mode
Display Accuracy
Synchronous mode
Update Time
1 per second
Input Signal
H Level
Sensor Power
Battery
Setter
Flashing, Delay angle
Product Features
Extruded aluminum, NEMA 4X construction: Extraordinary durability yields long service life Internal battery supply: Lightweight; enables easy portability Repeatable accuracy ( 0.01% of reading): Fully meets the strictest tolerances Phase shift (in degrees of delay time): Enables visual analysis of rotating/reciprocating objects through all points of motion/time/angle Flash timer control: Prolongs flash tube life Manual flash controller knob: Permits easy/accurate adjustments to flash rate Continuous duty cycle: Eliminates downtime waiting for unit to cool Highly polished focused reflector: Prevents "blind" viewing areas
