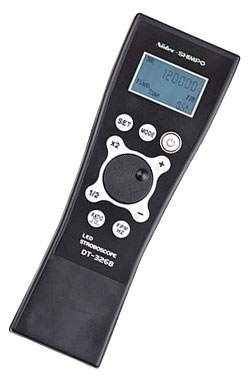

Shimpo DT-326B High Performance LED Stroboscope, Battery Powered, 60 - 120,000 FPM
The Shimpo DT-326B High Performance LED Stroboscope, Battery Powered, 60 - 120,000 FPM is a portable, light-weight stroboscope utilizing super bright high powered LED lamps. The Shimpo DT-326B High Performance LED Stroboscope array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. Containing a rechargeable lithium battery, a single charge can last up to a full 12 hours of operation. The DT-326B is designed for speed and frequency measurements in motion and vibration analysis applications. It is ideal for predictive and preventive maintenance applications such as: motors, shafts, roto-gravure printing, extruders, blow molding, wire lettering and striping, engraving, pulse jets, water jets, fans, cams, gear teeth, belt inspections, fuel injectors, vibration analysis, audio speaker analysis, spindle spinning, cutting blade timing and sharpness, plus many more in the printing, packaging, textile, automotive, cable, mining, steel, chemical, optical, medical and shipbuilding industries.
Wide Flash Range:60 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application Adjustable Flash Pulseduration achieves sharper images for detailed inspection AC Operation:100 240 VAC Line Power Operation with AC adapter for continuous use or rechargeable battery for maximum portability Phase ShiftAdvances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or "drifting" images Trigger Input Interface:Input sensor trigger function allows process machinery to control flash rate Delay time adjustmentcombined with leading or trailing edge activation simplifies process set-up when using external signal input x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning Long-life LED operation 1 Year Warranty
Model
DT-326B
Flash Rate Range
60 to 120,000 FPM ; 1-2000 Hz
Accuracy
0.01%±1 digit of F.S. @ 77° F (25°C)
Lux Rating (Approx.)
6000 FPM & 2.5°
Lamp Lifetime
Approximately 3~5 years depending on usage
Display
Backlit LCD
Resolution
60 ~12,000 FPM = 0.1 FPM 12,001~120,000 FPM = 1 FPM 1~200 HZ = 0.01 Hz 201~2000 = 0.1 Hz
Flash Duration
0.1°- 2.5°
Phase Shift
0-359°
Power Requirement
100-240 VAC 50/60Hz
Battery
Lithium DC 10.8V 2000mA
Battery Life
Approx. 12 hours depending on settings
Input Signal
12 V Pulse Input
Input Signal Range
60-12,000 FPM (1-2000Hz)
Input pulse width
32-95°F (0-35°C)
Humidity Limits
35 to 85% RH
Enclosure
ABS
Product Weight
0.84 lb (380 g)
Package Weight
3.50 lb (1.6 kg)
Dimensions
8.2 x 2.8 x 2.4” (208 x 70 x 60mm)
Approvals
CE
Included Accessories
AC power adapter, Carrying Case
Shimpo DT-326B High Performance LED Stroboscope AC or Battery Power Carrying Case
More Information
Product Specifications
Model
DT-326B
Flash Rate Range
60 to 120,000 FPM ; 1-2000 Hz
Accuracy
0.01%±1 digit of F.S. @ 77° F (25°C)
Lux Rating (Approx.)
6000 FPM & 2.5°
Lamp Lifetime
Approximately 3~5 years depending on usage
Display
Backlit LCD
Resolution
60 ~12,000 FPM = 0.1 FPM 12,001~120,000 FPM = 1 FPM 1~200 HZ = 0.01 Hz 201~2000 = 0.1 Hz
Flash Duration
0.1°- 2.5°
Phase Shift
0-359°
Power Requirement
100-240 VAC 50/60Hz
Battery
Lithium DC 10.8V 2000mA
Battery Life
Approx. 12 hours depending on settings
Input Signal
12 V Pulse Input
Input Signal Range
60-12,000 FPM (1-2000Hz)
Input pulse width
32-95°F (0-35°C)
Humidity Limits
35 to 85% RH
Enclosure
ABS
Product Weight
0.84 lb (380 g)
Package Weight
3.50 lb (1.6 kg)
Dimensions
8.2 x 2.8 x 2.4” (208 x 70 x 60mm)
Approvals
CE
Included Accessories
AC power adapter, Carrying Case
Product Features
Wide Flash Range:60 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application Adjustable Flash Pulseduration achieves sharper images for detailed inspection AC Operation:100 240 VAC Line Power Operation with AC adapter for continuous use or rechargeable battery for maximum portability Phase ShiftAdvances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or "drifting" images Trigger Input Interface:Input sensor trigger function allows process machinery to control flash rate Delay time adjustmentcombined with leading or trailing edge activation simplifies process set-up when using external signal input x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning Long-life LED operation 1 Year Warranty
