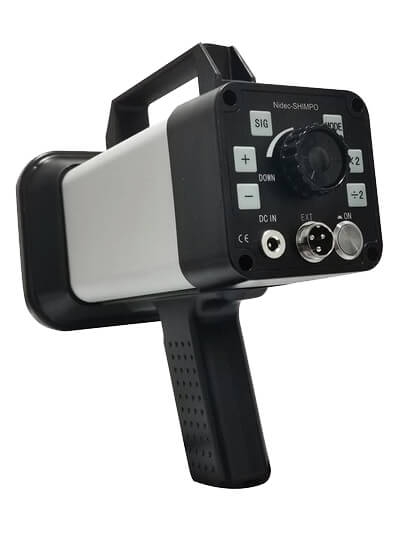

Shimpo DT-735 Battery Powered Xenon Stroboscope, 60-12,000 fpm with Universal AC Charger
The Shimpo DT-735 Battery Powered Xenon Stroboscope, 60-12,000 fpm with Universal AC Charger is a portable, highly stable, industrial- quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement.
NIST-Traceable Calibration Certificate & Test Report optionally available Includes top and bottom handle to allow user operation preference Easy-to-use controls with bright LED display Made in China 1-year warranty CE Certified
Flash Range
60 - 12,000 FPM
Accuracy
± 0.01%
Resolution
0.1 from 60-9999; 1 from 6,001-12,000
Display
5 digits 0.4” (10 mm) height
Flash Tube
Xenon ≤ 45W
Tube Life
50,000,000 flashes
Flash Duration
10-30 μs automatically adjusts with flash rate
External Trigger Input
5V ~ 12V pulse signal (high level trigger) up to 50 mA
Battery Type
Ni-MH
Battery Life
1.5 to 2 hours depending on settings
Charging Time
5 hours to full charge
Power Requirement
100-240 VAC 50/60 Hz
Operating Temperature
32 - 104°F ( 0 - 40°C )
Dimensions
9.8 x 4.7 x 4.7” (250 x 120 x 120 mm)
Product Weight
2.75 lb (1.25 kg)
More Information
Product Specifications
Flash Range
60 - 12,000 FPM
Accuracy
± 0.01%
Resolution
0.1 from 60-9999; 1 from 6,001-12,000
Display
5 digits 0.4” (10 mm) height
Flash Tube
Xenon ≤ 45W
Tube Life
50,000,000 flashes
Flash Duration
10-30 μs automatically adjusts with flash rate
External Trigger Input
5V ~ 12V pulse signal (high level trigger) up to 50 mA
Battery Type
Ni-MH
Battery Life
1.5 to 2 hours depending on settings
Charging Time
5 hours to full charge
Power Requirement
100-240 VAC 50/60 Hz
Operating Temperature
32 - 104°F ( 0 - 40°C )
Dimensions
9.8 x 4.7 x 4.7” (250 x 120 x 120 mm)
Product Weight
2.75 lb (1.25 kg)
Product Features
NIST-Traceable Calibration Certificate & Test Report optionally available Includes top and bottom handle to allow user operation preference Easy-to-use controls with bright LED display Made in China 1-year warranty CE Certified
