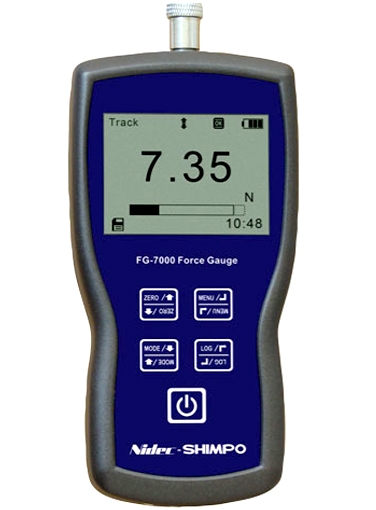

The Shimpo FG-7006 Digital Force Gauge, 22lb Capacity is sensed, and Auto Peak mode which is similar to Peak mode except the peak on the display will additionally reset after a programmed time period. Programmable limits provide a quick visual and audible indication if a test passed or failed on the LCD. In addition, the comparator output can be set up for integration of the instrument into your quality system for repetitive testing such as on a production line.
1000 Hz Sample Rate combined with &0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results
Three mode operation: Track, Peak & Auto-Peak
180 Auto-reversible display, tension/compression icons, and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing
1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
Comparator output function provides user with easy Pass/Fail testing system integration capabilities
Multi-language and engineering units selection provides flexible user comfort
Field Calibration capability eliminates need to send to lab

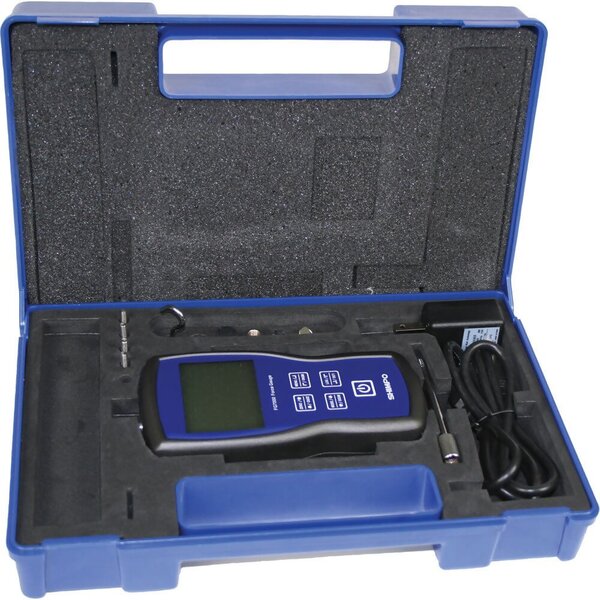

Calibration Certificate included along with popular adapter attachments
Free Data logging/graphing software available for free download on website
mN, N, gf, kgf, ozf, and lbf. (Depending on Range)
Overload Capacity
150% of F.S. (LCD flashes beyond 110% of F.S.)
Data Sampling Rate
1000 Hz
Display
2.1 x 1.6" (54 x 40 mm); dot matrix LCD with LED Backlight
Display Update Rate
10 times/second
Memory
1000 data
1000 data
Programmable high and low limits
Battery Indicator
Display flashes battery icon when battery is low
Power
3.6VDC 800mAH Ni-MH rechargeable batteries
Battery Life
Approximately 16 hours continuous use per full charge
Charger / Adapter
Universal USB/BM charger, Input
Temperature Effects
<0.054% per °F (0.03% FS per °C)
Outputs
1.) RS-232, 2.) "Within" set point output 3.) "Under or over" set point output
Operating Temperature
14 to 104 °F (-10 to 40 °C)
Storage Relative Humidity
20 to 80%
Housing
Aluminum
Storage Temperature
-4 to 122 °F (-20 to 50 °C)
Oper. Relative Humidity
5 to 95%
Dimensions
5.7 x 2.9 x 1.4"” (145 x 73 x 35.5 mm)
Weight
1.5 lb (0.7 kg)
Origin
China
Warranty
1 year
Product Features
1000 Hz Sample Rate combined with &0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results
Three mode operation: Track, Peak & Auto-Peak
180 Auto-reversible display, tension/compression icons, and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing
1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
Comparator output function provides user with easy Pass/Fail testing system integration capabilities
Multi-language and engineering units selection provides flexible user comfort
Field Calibration capability eliminates need to send to lab
Calibration Certificate included along with popular adapter attachments
Free Data logging/graphing software available for free download on website
