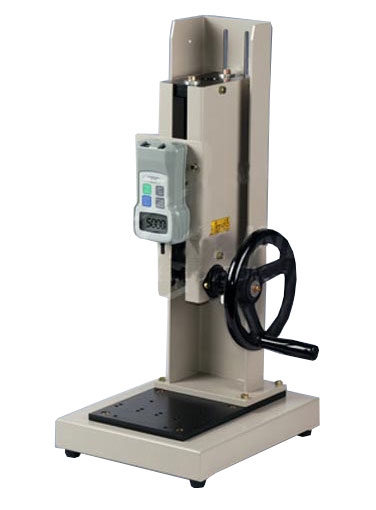

Shimpo FGS-100H Manual Hand Wheel Operated Test Stand, 110 lb Capacity
The Shimpo FGS-100H Manual Hand Wheel Operated Test Stand, 110 lb Capacity is ideal for obtaining accurate, consistent results for both tension and compression testing up to 110lbs.
Force Gauge Not Included - Force Gauge Sold Separately Versatile bottom mounting plate accepts standard and custom-made attachments Precision gear movements Sturdy, all steel construction Constant Linear Motion
Capacity
110 lbs (50 kg)
Stroke
5.9" (150 mm)
Travel Rate
3 mm/wheel turn (approximately)
Dimensions
Refer to dimensions above
Weight
approx. 33 lb (15 kg)
Compatible Gauges
FGE / FGV, FGV-XY
Warranty
1 year
*Note
Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second
More Information
Product Specifications
Capacity
110 lbs (50 kg)
Stroke
5.9" (150 mm)
Travel Rate
3 mm/wheel turn (approximately)
Dimensions
Refer to dimensions above
Weight
approx. 33 lb (15 kg)
Compatible Gauges
FGE / FGV, FGV-XY
Warranty
1 year
*Note
Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second
Product Features
Force Gauge Not Included - Force Gauge Sold Separately Versatile bottom mounting plate accepts standard and custom-made attachments Precision gear movements Sturdy, all steel construction Constant Linear Motion
