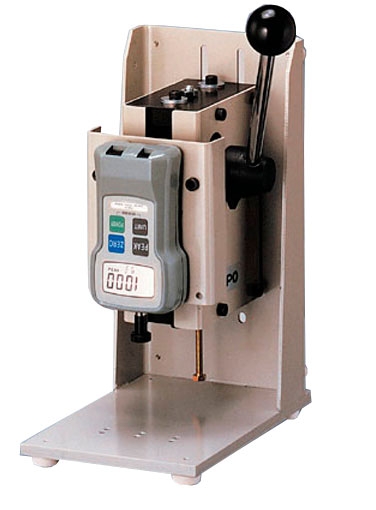

Shimpo FGS-50S Manual Lever Test Stand, 50lb Capacity
The Shimpo FGS-50S Manual Lever Test Stand, 50lb Capacity is a test stand that has a Maximum capacity 50 lbs. The FGS-50S Manual Lever Test Stand features manual lever operation for compression (push) measurements.
Force Gauge Not Included - Force Gauge Sold Separately Manual lever operation for compression (push) measurements Adjustable stroke with stop screws: max. 2" (50 mm) Large platform base accepts special attachments Max. capacity 50 lbs Fixed position (clearance)in 3 steps: 40, 70, 100 mm Dimensions 150 x 240 x 320 mm (L x W x H)
Capacity
max. 200 N (20 kg)
Stroke
2" (50 mm)
Dimensions
150 x 240 x 320 mm (L x W x H)
Weight
approx. 25 lbs
Compatible Gauges
FGE / FGV
Warranty
1 year
More Information
Product Specifications
Capacity
max. 200 N (20 kg)
Stroke
2" (50 mm)
Dimensions
150 x 240 x 320 mm (L x W x H)
Weight
approx. 25 lbs
Compatible Gauges
FGE / FGV
Warranty
1 year
Product Features
Force Gauge Not Included - Force Gauge Sold Separately Manual lever operation for compression (push) measurements Adjustable stroke with stop screws: max. 2" (50 mm) Large platform base accepts special attachments Max. capacity 50 lbs Fixed position (clearance)in 3 steps: 40, 70, 100 mm Dimensions 150 x 240 x 320 mm (L x W x H)
