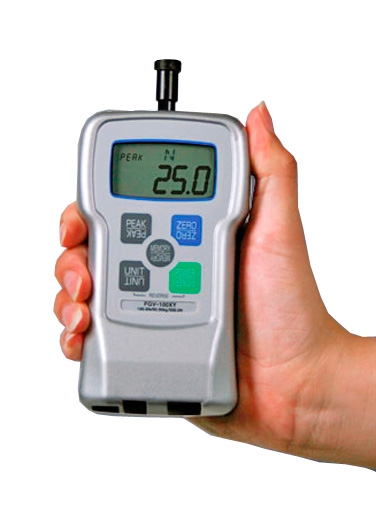

Shimpo FGV-XY Digital Force Gage
The Shimpo FGV-XY Digital Force Gage is a precision instrument that delivers industry-leading value with an extensive list of features including USB output, reversible display and a rugged metal housing. Each gauge is supplied as a complete kit with several screw-on adapters providing a complete force testing instrument for use in a wide variety of industries. All models include built-in memory for 1000 values, easily downloaded via the USB data output to a PC using the software & cable supplied at no charge. Force values can be transferred in real time continuously or batch downloaded after testing is complete. In addition, RS-232C and analog outputs are also supplied providing the FGV-XY with maximum flexibility for data transfer and recording. Additionally, measurement statistics are automatically calculated and stored and can be recalled to the display for viewing or can be downloaded. Statistics include maximum, minimum, average and standard deviation. The FGV-XY provides is suitable for use in numerous industries & applications including incoming quality inspection, finished goods testing, R&D as well as on wire pull testing, wire crimps, trigger pull, brake pedal, aerospace, ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.
1000 Hz Sample Rate captures true peak values even those occurring over very short time intervals Includes traceable calibration certificate (sample) USB, RS-232 & Analog Outputs-- all included! 3 different outputs for data transfer provides maximum flexibility 9 separate capacities from 0.5 Lb to 200 Lb select the best range without forfeiting accuracy 200% Overload Capacity minimizes the likelihood of costly repairs Rugged Die Cast Aluminum Housing & Rugged Construction provides exceptional durability even in the toughest field applications Reversible Display optimized for use as both a handheld gauge or mount upside down on a test stand Selectable Auto-Shut Off prolongs battery life, while allowing constant use when powered via supplied AC-adapter Small Size Ergonomic design provides comfort for hand held testing Automatic Calculation & Display of Statistics provides immediate results and analysis of your force testing 3 Memory Modes optimize data storage for any application transferring data to PC/Laptop when convenient Built In User-Set Hi-Lo Alarm Limits perform quick and easy Go-No Go testing with visual LCD indicator when "out of tolerance"
Measuring Modes
Realtime, Compression Peak, Tension Peak
Auto Power Off
Default is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter.
Sampling Rate
1000 times per second (1000Hz/1KHz)
Accuracy
Accuracy of ±0.2% providing superb repeatability
Temperature Drift
Gain
Operating Time
Approximately 8 hours after a full charge. Charging Time
Overload
200% of Full Scale On Model FGV-200XY
Tracking
User Selectable (ON/OFF)
USB Output
Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included).
RS-232C Output
Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory.
Analog Output
± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms
Overload/Comparator Output
Open-collector output (Max DC30V/5mA).
Temperature range
0 ~ 40° C (-32 ~ 104° F)
Humidity range
35 ~ 85% RH
Accessories(Included)
AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable
Application Software
Application software (USB version)
Shimpo FGV-XY Digital Force Gage AC adapter/charger Hook Chisel Flat head Notched head Hanger Cone head Thread Adapter Extension rod USB cable Carrying case
More Information
Product Specifications
Measuring Modes
Realtime, Compression Peak, Tension Peak
Auto Power Off
Default is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter.
Sampling Rate
1000 times per second (1000Hz/1KHz)
Accuracy
Accuracy of ±0.2% providing superb repeatability
Temperature Drift
Gain
Operating Time
Approximately 8 hours after a full charge. Charging Time
Overload
200% of Full Scale On Model FGV-200XY
Tracking
User Selectable (ON/OFF)
USB Output
Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included).
RS-232C Output
Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory.
Analog Output
± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms
Overload/Comparator Output
Open-collector output (Max DC30V/5mA).
Temperature range
0 ~ 40° C (-32 ~ 104° F)
Humidity range
35 ~ 85% RH
Accessories(Included)
AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable
Application Software
Application software (USB version)
