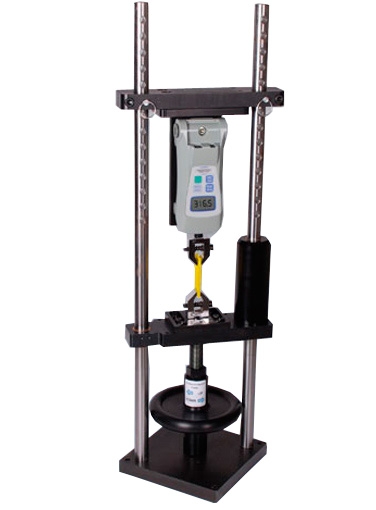

Shimpo FTS-HD2 High Capacity Force Test System, 1000 lb / 500 Kg / 5000 N Capacity
The Shimpo FTS-HD2 High Capacity Force Test System, 1000 lb / 500 Kg / 5000 N Capacity is a high capacity force test system engineered for precise & repeatable measurements of push or pull forces up to 1000 lbs. A smooth operating turn-wheel provides a precise 0.1" travel per revolution. The FTS-HD heavy duty construction provides repeatable and reliable testing for many years. The Shimpo FTS-HD Force Test System features adjustable height ranges, customizable lengths (for different sample sizes) and an option for a digital length/height meter. The FTS-HD Force Test System includes the FGV-1000HXY Digital Force Gauge and FGS-1000H Mechanical Hand-Wheel Test Stand. The system is designed for precise, accurate measurements.
Includes Gauge and Test Stand 1000 lb / 500 kg / 5000 N Capacity Accuracy 0.2% 200% overload protection Measures both compression and tension forces 200% overload protection Heavy-duty load sensor User-selected units of Pounds, Kilograms or Newtons Measures both compression and tension forces Removable hanger 1 Year Warranty Includes NIST Calibration Certificate
Accuracy
±0.2% full scale
Resolution
0.1 lb, 0.1 Kg, 1 N
Display
4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update
0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate
1000 times per second
Overload Protection
150% of full scale
Power
Rechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-Off
Yes (not active if adapter/charge is in use)
Battery Life
12 hours (when fully charged)
Recharge Time
Approximately 18 hours when fully discharged
Dimensions
8.43" L x 3.23" W x 2.15" H (214 mm x 82 mm x 54.5 mm)
Weight
78 lb (34 Kg)
Approvals
CE approved
Outputs
RS232C & Analog Output ±1 VDC (through a 12 bit D/A converter)
Overload Output
One NPN OC transistor for tension, one NPN OC transistor for compression
More Information
Product Specifications
Accuracy
±0.2% full scale
Resolution
0.1 lb, 0.1 Kg, 1 N
Display
4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update
0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate
1000 times per second
Overload Protection
150% of full scale
Power
Rechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-Off
Yes (not active if adapter/charge is in use)
Battery Life
12 hours (when fully charged)
Recharge Time
Approximately 18 hours when fully discharged
Dimensions
8.43" L x 3.23" W x 2.15" H (214 mm x 82 mm x 54.5 mm)
Weight
78 lb (34 Kg)
Approvals
CE approved
Outputs
RS232C & Analog Output ±1 VDC (through a 12 bit D/A converter)
Overload Output
One NPN OC transistor for tension, one NPN OC transistor for compression
Product Features
Includes Gauge and Test Stand 1000 lb / 500 kg / 5000 N Capacity Accuracy 0.2% 200% overload protection Measures both compression and tension forces 200% overload protection Heavy-duty load sensor User-selected units of Pounds, Kilograms or Newtons Measures both compression and tension forces Removable hanger 1 Year Warranty Includes NIST Calibration Certificate
