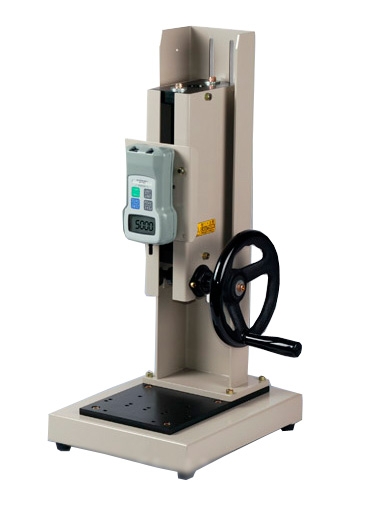

Shimpo FTS-X Force Test System
The Shimpo FTS-X Force Test System is a complete Test System designed for precision measurement of push / pull force on a wide variety of applications. FTS-X offers USB data output and along with a complete software package to record and analyze your test data.
Includes Gauge and Test Stand 1000 Hz Sample Rate captures true peak values even those occurring over very short time intervals Automatic Calculation & Display of Statistics provides immediate results and analysis of your force testing USB, RS-232 & Analog Outputs-- all included! 3 different outputs for data transfer provides maximum flexibility 200% Overload Capacity minimizes the likelihood of costly repairs 3 Memory Modes optimize data storage for any application transferring data to PC/Laptop when convenient Reversible Display optimized for use as both a handheld gauge or mount upside down on a test stand Versatile bottom mounting plate accepts standard and custom-made attachments Precision gear movements Constant Linear Motion
Capacity
110 lbs (50 kg)
Stroke
5.9" (150 mm)
Travel Rate
3 mm/wheel turn (approximately)
Temperature range
0 ~ 40° C (-32 ~ 104° F)
Measuring Modes
Realtime, Compression Peak, Tension Peak
Display Update Rate
User Selectable
Sampling Rate
1000 times per second (1000Hz/1KHz)
Accuracy
± 0.2% F.S.
Temperature Drift
Gain
Humidity range
35 ~ 85% RH
Overload
200% of Full Scale
Complete Kit
AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable
USB Output
Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included).
RS-232C Output
Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory.
Analog Output
± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms
Overload/Comparator Output
Open-collector output (Max DC30V/5mA).
Application Software
Application software (USB version)
Warranty
1 year
Shimpo FTS-X Force Test System AC Adaptor/Charger Hook Chisel Flat head Notched head Hanger Cone head Thread Adapter Extension rod USB cable Carrying Case
More Information
Product Specifications
Capacity
110 lbs (50 kg)
Stroke
5.9" (150 mm)
Travel Rate
3 mm/wheel turn (approximately)
Temperature range
0 ~ 40° C (-32 ~ 104° F)
Measuring Modes
Realtime, Compression Peak, Tension Peak
Display Update Rate
User Selectable
Sampling Rate
1000 times per second (1000Hz/1KHz)
Accuracy
± 0.2% F.S.
Temperature Drift
Gain
Humidity range
35 ~ 85% RH
Overload
200% of Full Scale
Complete Kit
AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable
USB Output
Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included).
RS-232C Output
Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory.
Analog Output
± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms
Overload/Comparator Output
Open-collector output (Max DC30V/5mA).
Application Software
Application software (USB version)
Warranty
1 year
Product Features
Includes Gauge and Test Stand 1000 Hz Sample Rate captures true peak values even those occurring over very short time intervals Automatic Calculation & Display of Statistics provides immediate results and analysis of your force testing USB, RS-232 & Analog Outputs-- all included! 3 different outputs for data transfer provides maximum flexibility 200% Overload Capacity minimizes the likelihood of costly repairs 3 Memory Modes optimize data storage for any application transferring data to PC/Laptop when convenient Reversible Display optimized for use as both a handheld gauge or mount upside down on a test stand Versatile bottom mounting plate accepts standard and custom-made attachments Precision gear movements Constant Linear Motion
