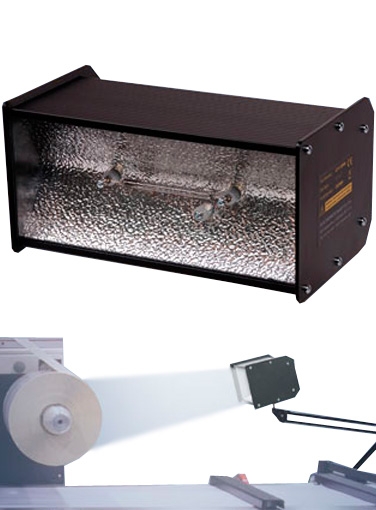

Shimpo LS-9-12000 Xenon Linear Stroboscope with One LS-DIN Connector

The Shimpo LS-9-12000 Xenon Linear Stroboscope with One LS-DIN Connector is designed for fixed mounting on all machinery that utilize a strobe for visual inspection including, rewinders, slitters and similar process equipment in the label printing and process market as well as many others markets including vibration analyzers, balancers, metal producing equipment and much more. The LS-9's flash rate can be externally triggered by an external sensor/controller on the process machine or the following optional accessories; the LS-FCM Flash Control Module or the LS-SCU Remote Strobe Controller. Refer to separate webpage on these accessories by clicking the links in RELATED PRODUCTS section. The strobe operates using 24V DC (18 - 28V DC) using power already available on the machine or by using the our worldwide AC-DC power adapter available as an option. The LS-9 produces an extremely bright, sharp image employing a quartz glass xenon tube with extremely short flash duration of less than 10µs allowing detailed visual inspection of fast-moving targets. While under observation, when the flash rate is synchronized with the "repeat rate" of the web material, the image will appear "frozen" allowing for convenient inspection.
