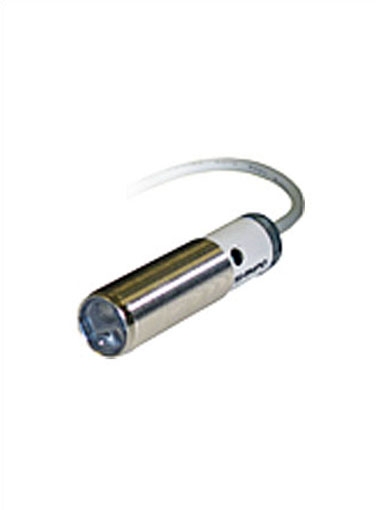

Shimpo LS-S50MLR Photo Reflective Sensor
The Shimpo LS-S50MLR Photo Reflective Sensor is a laser sensor that can be taught to recognize difference in colors. It is a class 1 red laser with switching frequency of 1.5KHZ. Contained in a metal housing with 6ft of cable, which can be utilized for different operations including stroboscopes, counters and panel tachometers. It includes a trimmer potentiometer that is located on the side for minimum and optimum sensitivity adjustments. Can be used in normally closed or normally open operation, NPN type of output, with a yellow LED for signal indication and a green LED for power.
LS-S50ML is a laser sensor that can be taught to recognize difference in colors Visible Red Light Source NPN or PNP Connection Rugged Metal Housing Mounting accessories and cable included
Sensing Range
25 - 400 mm
Sensing Head
Straight
Load Current
200 mA max
Supply Voltage
10 - 30 VDC
Voltage Ripple
10%
Current Consumption
<= 30 mA
Operating Mode
Light on / Dark on
Response Time
<= 1.0 ms
Output
NPN normally Open / NPN normally Closed / PNP normally Open / PNP normally Closed
Short Circuit and Overload Protection
Yes
Reverse Polarity Protection
Yes
Switching Frequency
500 Hz
Protection (IEC)
IP67
Light Spot Size
~0.5 mm at range of 170 mm
Ambient Light Resistance
<= 30,000 Lux
Working Temperature
-13 F to 158 F
Storage Temperature
-22 F to 158 F
Housing Material
Nickel-plated Brass
Weight
2.1 oz
Light Source
Visible Red Laser 660 nm
Electrical Connection
Quick Disconnect
More Information
Product Specifications
Sensing Range
25 - 400 mm
Sensing Head
Straight
Load Current
200 mA max
Supply Voltage
10 - 30 VDC
Voltage Ripple
10%
Current Consumption
<= 30 mA
Operating Mode
Light on / Dark on
Response Time
<= 1.0 ms
Output
NPN normally Open / NPN normally Closed / PNP normally Open / PNP normally Closed
Short Circuit and Overload Protection
Yes
Reverse Polarity Protection
Yes
Switching Frequency
500 Hz
Protection (IEC)
IP67
Light Spot Size
~0.5 mm at range of 170 mm
Ambient Light Resistance
<= 30,000 Lux
Working Temperature
-13 F to 158 F
Storage Temperature
-22 F to 158 F
Housing Material
Nickel-plated Brass
Weight
2.1 oz
Light Source
Visible Red Laser 660 nm
Electrical Connection
Quick Disconnect
Product Features
LS-S50ML is a laser sensor that can be taught to recognize difference in colors Visible Red Light Source NPN or PNP Connection Rugged Metal Housing Mounting accessories and cable included
