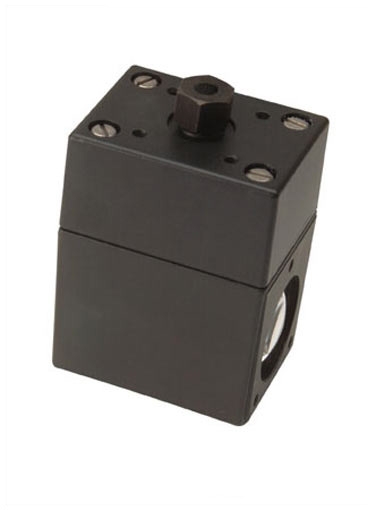

Shimpo MCS-625 Photo Reflective Sensor, Operating Range: 1in to 3ft
The Shimpo MCS-625 Photo Reflective Sensor, Operating Range: 1in to 3ft is consisted of a LED infra-red light source sensing device and amplifier contained in a heavy-duty housing. For initial alignment purposes, a small indicator lamp is mounted in the top of the sensor housing. The MCS-625 has an open collector output and requires a pull up resistor.
Photo Reflective Sensor The MCS-625 has an open collector output and requires a pull up resistor Consists of a LED infra-red light source sensing device and amplifier contained in a heavy-duty housing A small indicator lamp is mounted in the top of the sensor housing
Operating Range
1" to 3ft
Power Input
12 to 18VDC at 35 to 50mA
Activation Frequency
250Hz
Ambient Temperature
-30ºC to 50ºC ( -22ºF to 122ºF)
Output
Open collector type sink current 250mA max
Cable length
10ft
Weight
18.5 oz
Housing
Zinc die cast
Mounting
4 mounting holes in base, 3 holes in face
More Information
Product Specifications
Operating Range
1" to 3ft
Power Input
12 to 18VDC at 35 to 50mA
Activation Frequency
250Hz
Ambient Temperature
-30ºC to 50ºC ( -22ºF to 122ºF)
Output
Open collector type sink current 250mA max
Cable length
10ft
Weight
18.5 oz
Housing
Zinc die cast
Mounting
4 mounting holes in base, 3 holes in face
Product Features
Photo Reflective Sensor The MCS-625 has an open collector output and requires a pull up resistor Consists of a LED infra-red light source sensing device and amplifier contained in a heavy-duty housing A small indicator lamp is mounted in the top of the sensor housing
