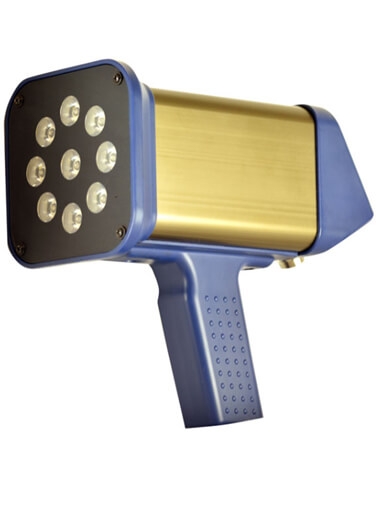

Shimpo ST-320BL Black Light LED Stroboscope (UV Strobe)
The Shimpo ST-320BL Black Light LED Stroboscope (UV Strobe) is an instrument that provides light in the Ultraviolet spectrum required to illuminate UV Inks used in security tags, watermarks, labels and more. The ST-320BL can be used as a hand-held portable strobe or fixed-mounted for continuous use. It features long-life LEDs that provide even light distribution and don't require replacement like conventional xenon type strobes.
Flash Range 60 120,000 Flashes/min. (1-2000 Hz) Flash rate can be set via controls on strobe or externally-triggered from a remote sensor "x2" and "1/2" keys to quickly "double" or "half" the flash rate to identify the correct flash frequency 1/4-20 UNC threaded bushing for permanent mount applications (remove trigger handle) User selectable units of FPM (Flashes/Min) or Hz Backlit LCD Dispay useful in low ambient lighting conditions User-selected flash durations provides optimal settings for image sharpness/brightness Battery-powered model ST-320BL-2 can operate continuously from supplied AC-Adapter/Charger
Flash Rate Range
60 to 120,000 Flashes/Min (1-2000 Hz)
Accuracy
0.01%±1 digit of F.S. @ 77° F (25°C)
Lamp Lifetime
Approximately 3~5 years depending on usage
Display
Backlit LCD
Resolution
60 ~ 12,000 FPM = 0.1 FPM 12,001 ~ 120,000 FPM = 1 FPM 1 ~ 200 HZ = 0.01 Hz 201 ~ 2000 = 0.1 Hz
Flash Duration
0.1°- 2.5°
Phase Shift
0-359°
Power Required
ST-320BL-1 (115V AC) ST-320BL-1-230V (230V AC) ST-320BL-2 (Rechargeable Battery supplied with Universal Charger 100-240V AC)
Battery (ST-320BL-2)
Lithium DC 10.8V 2000mA
Battery Life (ST-320BL-2)
Approx. 12 hrs depending on setting
Input Signal
12 V Pulse Input; 3 pin M-12
Input Signal Range
60-120,000 FPM (1-2000 Hz)
Input Pulse Width
Over 50 ?s
Input Signal Flash Delay
0-999 ms; 0-359° (user-set)
Temperature Limits
32-95°F (0-35°C)
Humidity Limits
35 to 85% RH
Approvals
CE
Warranty
1-Year
Included Accessories
Carrying Case, ST-320BL-1
More Information
Product Specifications
Flash Rate Range
60 to 120,000 Flashes/Min (1-2000 Hz)
Accuracy
0.01%±1 digit of F.S. @ 77° F (25°C)
Lamp Lifetime
Approximately 3~5 years depending on usage
Display
Backlit LCD
Resolution
60 ~ 12,000 FPM = 0.1 FPM 12,001 ~ 120,000 FPM = 1 FPM 1 ~ 200 HZ = 0.01 Hz 201 ~ 2000 = 0.1 Hz
Flash Duration
0.1°- 2.5°
Phase Shift
0-359°
Power Required
ST-320BL-1 (115V AC) ST-320BL-1-230V (230V AC) ST-320BL-2 (Rechargeable Battery supplied with Universal Charger 100-240V AC)
Battery (ST-320BL-2)
Lithium DC 10.8V 2000mA
Battery Life (ST-320BL-2)
Approx. 12 hrs depending on setting
Input Signal
12 V Pulse Input; 3 pin M-12
Input Signal Range
60-120,000 FPM (1-2000 Hz)
Input Pulse Width
Over 50 ?s
Input Signal Flash Delay
0-999 ms; 0-359° (user-set)
Temperature Limits
32-95°F (0-35°C)
Humidity Limits
35 to 85% RH
Approvals
CE
Warranty
1-Year
Included Accessories
Carrying Case, ST-320BL-1
Product Features
Flash Range 60 120,000 Flashes/min. (1-2000 Hz) Flash rate can be set via controls on strobe or externally-triggered from a remote sensor "x2" and "1/2" keys to quickly "double" or "half" the flash rate to identify the correct flash frequency 1/4-20 UNC threaded bushing for permanent mount applications (remove trigger handle) User selectable units of FPM (Flashes/Min) or Hz Backlit LCD Dispay useful in low ambient lighting conditions User-selected flash durations provides optimal settings for image sharpness/brightness Battery-powered model ST-320BL-2 can operate continuously from supplied AC-Adapter/Charger
