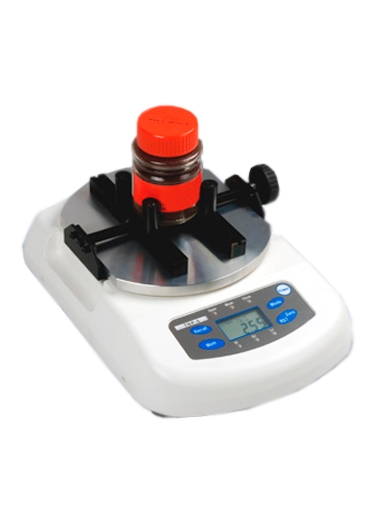

Shimpo TNP-10 Cap Torque Tester / Meter, 0-88.50 lbf-in / 0-10.00 Nm Capacity
The Shimpo TNP-10 Cap Torque Tester / Meter, 0-88.50 lbf-in / 0-10.00 Nm Capacity is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the CAP-TNP repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1,000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for a large batch testing to ensure overall product quality. The CAP-TNP torque meter is USB capable for computer testing. Combined with the free Digitorq Software, additional analysis and testing can be performed.
Includes Hi/Go/Lo Limits and LED Indicators Displays Torque values in, lb-in, Kgcm and Nm, Ncm USB interface including FREE Digitorq Software Captures Peak Opening, Peak Closing and Average torque values (CCW, CW) One touch operation, retains up to 1000 measurements in memory Small foot print, compact, space saver design Includes NIST Traceable Calibration Certificate CE Certified 2 Year Warranty
Overload protection
150%
Sample Diameter Range (min to max)
0.39" to 7.48" (10 - 190 mm)
Overload display
Display "OVR" on LCD (blinking on/off)
Main display
4-digit LCD display Character height 12mm
Sub display
3-digit LCD display Character height 7mm
Comparator display
Hi, GO, Lo LED Indicators
Accuracy
± 0.5% full scale
Open mode
Max vale when opening. Displays max counter clockwise torque.
Close mode
Max value when closing. Displays max clockwise torque
Average mode
Real time display. Displays max torque in real time
Display Update Time
1, 2, 4 or 8 updates/second, user-set
Sampling Rate
1000 times/second
Memory data number
1000 data points (max)
Statistic process
Average value, max value and min value
Data output
USB 1.1
PC software
Digitorque software
Accessories
USB cable, AC adapter, 30mm chuck pin (4pcs), Manual
Dimensions L x W x H
12.60" x 8.94" x 4.96" (320 x 227 x 126mm)
Operation Temperature
32 - 104°F (0 - 40°C)

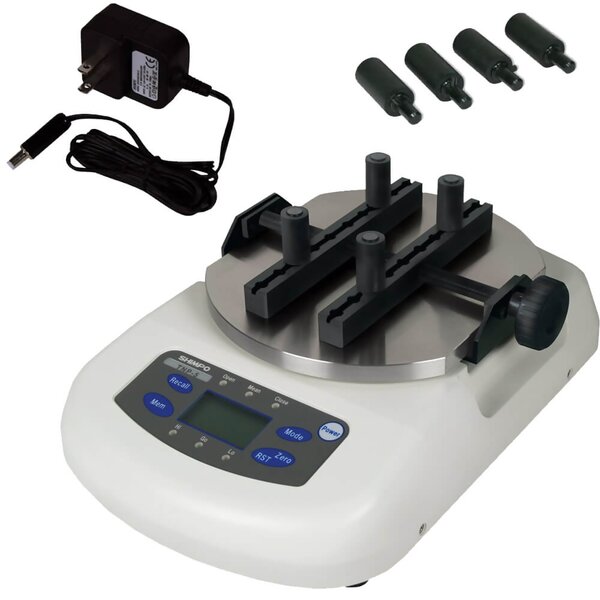

Kit Contents
CAP-TNP includes, tester, set of four - 1" gripping pegs, AC adapter, calibration certificate, USB Cable with CD-Software and instruction manual
Shimpo TNP Cap Torque Tester - Meter 1" gripping pegs AC adapter Calibration certificate USB Cable CD-Software Instruction manual
More Information
Product Specifications
Overload protection
150%
Sample Diameter Range (min to max)
0.39" to 7.48" (10 - 190 mm)
Overload display
Display "OVR" on LCD (blinking on/off)
Main display
4-digit LCD display Character height 12mm
Sub display
3-digit LCD display Character height 7mm
Comparator display
Hi, GO, Lo LED Indicators
Accuracy
± 0.5% full scale
Open mode
Max vale when opening. Displays max counter clockwise torque.
Close mode
Max value when closing. Displays max clockwise torque
Average mode
Real time display. Displays max torque in real time
Display Update Time
1, 2, 4 or 8 updates/second, user-set
Sampling Rate
1000 times/second
Memory data number
1000 data points (max)
Statistic process
Average value, max value and min value
Data output
USB 1.1
PC software
Digitorque software
Accessories
USB cable, AC adapter, 30mm chuck pin (4pcs), Manual
Dimensions L x W x H
12.60" x 8.94" x 4.96" (320 x 227 x 126mm)
Operation Temperature
32 - 104°F (0 - 40°C)
Kit Contents
CAP-TNP includes, tester, set of four - 1" gripping pegs, AC adapter, calibration certificate, USB Cable with CD-Software and instruction manual
Product Features
Includes Hi/Go/Lo Limits and LED Indicators Displays Torque values in, lb-in, Kgcm and Nm, Ncm USB interface including FREE Digitorq Software Captures Peak Opening, Peak Closing and Average torque values (CCW, CW) One touch operation, retains up to 1000 measurements in memory Small foot print, compact, space saver design Includes NIST Traceable Calibration Certificate CE Certified 2 Year Warranty
