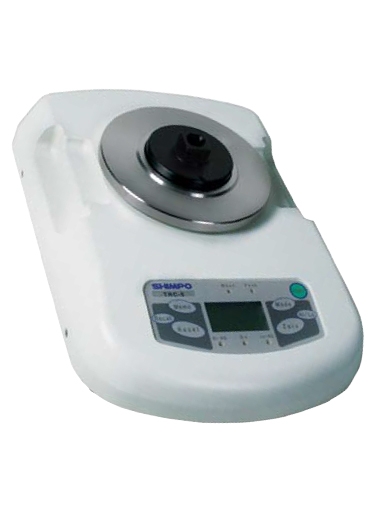

Shimpo TRC-2 Digital Torque Tester, Range 0-17.70 lb·in / 0.020 - 2.000 Nm / 2.0 - 200.0 Ncm / 0-20.39 kgcm
The Shimpo TRC-2 Digital Torque Tester, Range 0-17.70 lb·in / 0.020 - 2.000 Nm / 2.0 - 200.0 Ncm / 0-20.39 kgcm is a user friendly instrument for calibrating or measuring torque values. A single button process does it all. Zero, Test, Store, and repeat. In addition to Average, Maximum, Minimum, and Peak values, the Shimpo TRC-2 Digital Torque Tester features Red/Green/Red LED's (HI-GO-LO) and audible alarm. It's wide 3,000 data points storage capacity makes large batch testing possible, insuring overall product quality. The TRC torque Checker is USB capable for easy PC/Software interface. Combined with the free DigiTorque_TRC software, graphical display and statistical analysis are performed and collected automatically. The TRC is a portable device powered with internal rechargeable batteries or through a universal AC adapter/charger. The TRC's small foot print saves valuable lab space. It's low profile, (3.82") rugged design, and NIST traceable calibration certificate promotes proper calibration procedures, insuring overall product quality.
Precise 0.5% F.S. 1 digit accuracy ensures exact results Variety of applications met with ranges from 17.7 inlb (2 Nm) all the way to 88.5 inlb (10 Nm) Memory function allows convenient storage of up to 3000 readings for later retrieval Large, easy to read LCD displays torque values in four selectable engineering units Durable, cast-aluminum heavy-duty construction withstands demanding wear and tear PC connectivity with USB interface and free Digitorq software enables data analysis and graphing on Microsoft Excel Truly portable with compact, light-weight design and internal, rechargeable batteries Recharge batteries with included 120/240V AC adapter/charger or utilize adapter for continuous use Change measuring modes to capture Average, Maximum or Minimum values in both clockwise (CW) & counterclockwise (CCW) directions Speed up large batch tests with the integral Red/Green LED comparator that responds in accordance to pre-programmed tolerances Includes Factory Certificate, CE Approval and 2 Year Warranty!
Accuracy
±0.5% / F.S.
Display
Main display
Comparator Display
LED indicates “NG”, “OK”, with adjustable alarm
Display Update Time
Select from 0.125 sec (8 times/sec), 0.25 sec (4 times/sec), 0.5 sec (2 times/sec), 1 sec (1 time/sec)
Measuring Mode
MEAN
Overload
120% of full scale
Sampling
100 Hz
Memory
Total 3,000 data (10 sets with 300 data point per set)
Data Output
USB1.1 (data download by special software)
Power
NiMH rechargeable battery, and AC adapter 100-240vac, 50/60 Hz
Operating Environment
32 -104?F (0 - 40?C) 35 - 85%RH (non condensing)
Dimensions
12.60” x 8.66” x 3.82” (320 x 220 x 97 mm)
Product Weight
Approx. 13.25 lb (6.0 kg)
Package Weight
Approx. 16.2 lb (7.35 kg)
Software
DigiTorque TRC Free Download from www.shimpoinst.com
Included Accessories
Torque adapter for driver, AC adapter/charger, USB cable, Mounting bracket, bolts for mounting bracket (2 pcs)
Certifications
CE
Warranty
2 year
More Information
Product Specifications
Accuracy
±0.5% / F.S.
Display
Main display
Comparator Display
LED indicates “NG”, “OK”, with adjustable alarm
Display Update Time
Select from 0.125 sec (8 times/sec), 0.25 sec (4 times/sec), 0.5 sec (2 times/sec), 1 sec (1 time/sec)
Measuring Mode
MEAN
Overload
120% of full scale
Sampling
100 Hz
Memory
Total 3,000 data (10 sets with 300 data point per set)
Data Output
USB1.1 (data download by special software)
Power
NiMH rechargeable battery, and AC adapter 100-240vac, 50/60 Hz
Operating Environment
32 -104?F (0 - 40?C) 35 - 85%RH (non condensing)
Dimensions
12.60” x 8.66” x 3.82” (320 x 220 x 97 mm)
Product Weight
Approx. 13.25 lb (6.0 kg)
Package Weight
Approx. 16.2 lb (7.35 kg)
Software
DigiTorque TRC Free Download from www.shimpoinst.com
Included Accessories
Torque adapter for driver, AC adapter/charger, USB cable, Mounting bracket, bolts for mounting bracket (2 pcs)
Certifications
CE
Warranty
2 year
Product Features
Precise 0.5% F.S. 1 digit accuracy ensures exact results Variety of applications met with ranges from 17.7 inlb (2 Nm) all the way to 88.5 inlb (10 Nm) Memory function allows convenient storage of up to 3000 readings for later retrieval Large, easy to read LCD displays torque values in four selectable engineering units Durable, cast-aluminum heavy-duty construction withstands demanding wear and tear PC connectivity with USB interface and free Digitorq software enables data analysis and graphing on Microsoft Excel Truly portable with compact, light-weight design and internal, rechargeable batteries Recharge batteries with included 120/240V AC adapter/charger or utilize adapter for continuous use Change measuring modes to capture Average, Maximum or Minimum values in both clockwise (CW) & counterclockwise (CCW) directions Speed up large batch tests with the integral Red/Green LED comparator that responds in accordance to pre-programmed tolerances Includes Factory Certificate, CE Approval and 2 Year Warranty!
