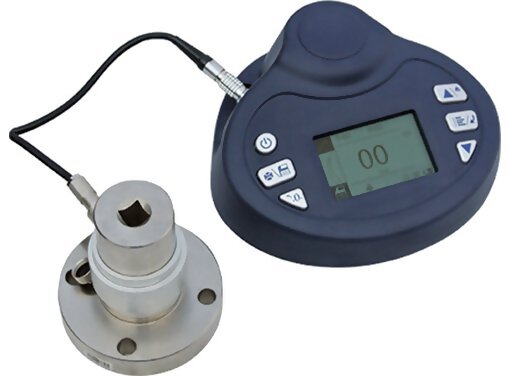

Shimpo TTC Digital Torque Tool Tester

SKU

ProductID-1782

Grouped product items
Product Name	Qty
Shimpo TTC-I-2 Digital Torque Tool Tester, 2 N-m / 1.48 ft-lb Capacity $995.00
Shimpo TTC-I-5 Digital Torque Tool Tester, 5 N-m / 3.68 ft-lb Capacity $995.00
Shimpo TTC-I-10 Digital Torque Tool Tester, 10 N-m / 7.38 ft-lb Capacity $1,095.00
Shimpo TTC-I-20 Digital Torque Tool Tester, 20 N-m / 14.75 ft-lb Capacity $1,195.00
Shimpo TTC-I-50 Digital Torque Tool Tester, 50 N-m / 36.88 ft-lb Capacity $1,225.00
Shimpo TTC-I-100 Digital Torque Tool Tester, 100 N-m / 73.76 ft-lb Capacity $1,495.00
Shimpo TTC-E-200 Digital Torque Tool Tester, External Sensor, 200 N-m / 147.51 ft-lb Capacity $1,995.00
Shimpo TTC-E-500 Digital Torque Tool Tester, External Sensor, 500 N-m / 368.78 ft-lb Capacity $2,195.00
Shimpo TTC-E-800 Digital Torque Tool Tester, External Sensor, 800 N-m / 590.05 ft-lb Capacity $2,295.00

The Shimpo TTC Digital Torque Tool Tester is available in all modes.

Strong, light-weight, compact aluminum enclosure allows portability and usage in any shop environment
Flexible six modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak
Backlit graphical, reversible display with analog bar graph plus CW/CCW directional indication provides fast interpretation of tool response. Selectable chart display mode aids viewing performance over the entire test
Preset operation with Pass-Fail LED icons enable quick determination of tool performance acceptance
Units come standard with USB or RS232 communication output for data upload
1000 memory record storage plus software provides easy data transfer
0.3% accuracy provides a standard for checking tools on ranges up to 590 ft-lb (800 N-m)
Operation via the rechargeable battery or the AC
Available rundown adapter for power tool testing on certain models
Calibration certificate with data guarantees performance upon purchase

Measuring Range	0.5% - 100% capacity
Accuracy	± 0.3 % (5 to 100% capacity)
Units of Measure	N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)
Measure Modes	Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
Tool Socket Size	TTC-2/5/10
Overload Protection	120% of Full Scale
Sampling Rate	2000 Hz
Peak Capture Rate	0.05 s
Display	160* 128 Dot matrix backlit LCD
Display Update Rate	10 times/sec
Memory	1000 data
Set Point	Programmable High and Low Limits
Battery Indication	Battery icon flashes when low
Charger/Adapter	Universal USB charger, input 100 – 240 V ac 50/60 Hz
Operating Temperature	14 to 104°F (-10 to 40°C)
Humidity Limit	20 – 80% RH
Power	3.6 V dc 1600 mAH Ni-MH
Battery Life	Approx. 16 Hours continuous on full charge
Output	USB, serial port RS-232, High and low limit NPN
Dimensions	Display TTC-I
Product Weight	TTC-I
Package Weight	TTC-I
Warranty	1-Year
Certification	CE
Included Accessories	USB cable, charger adapter, cal. cert. printer cable, square driver adapter connector (Ranges to 200 N-m only)

Product Specifications

Measuring Range	0.5% - 100% capacity
Accuracy	± 0.3 % (5 to 100% capacity)
Units of Measure	N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)
Measure Modes	Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
Tool Socket Size	TTC-2/5/10
Overload Protection	120% of Full Scale
Sampling Rate	2000 Hz
Peak Capture Rate	0.05 s
Display	160* 128 Dot matrix backlit LCD
Display Update Rate	10 times/sec
Memory	1000 data
Set Point	Programmable High and Low Limits
Battery Indication	Battery icon flashes when low
Charger/Adapter	Universal USB charger, input 100 – 240 V ac 50/60 Hz
Operating Temperature	14 to 104°F (-10 to 40°C)
Humidity Limit	20 – 80% RH
Power	3.6 V dc 1600 mAH Ni-MH
Battery Life	Approx. 16 Hours continuous on full charge
Output	USB, serial port RS-232, High and low limit NPN
Dimensions	Display TTC-I
Product Weight	TTC-I
Package Weight	TTC-I
Warranty	1-Year
Certification	CE
Included Accessories	USB cable, charger adapter, cal. cert. printer cable, square driver adapter connector (Ranges to 200 N-m only)

Product Features

Strong, light-weight, compact aluminum enclosure allows portability and usage in any shop environment
Flexible six modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak
Backlit graphical, reversible display with analog bar graph plus CW/CCW directional indication provides fast interpretation of tool response. Selectable chart display mode aids viewing performance over the entire test
Preset operation with Pass-Fail LED icons enable quick determination of tool performance acceptance
Units come standard with USB or RS232 communication output for data upload
1000 memory record storage plus software provides easy data transfer
0.3% accuracy provides a standard for checking tools on ranges up to 590 ft-lb (800 N-m)
Operation via the rechargeable battery or the AC
Available rundown adapter for power tool testing on certain models
Calibration certificate with data guarantees performance upon purchase
