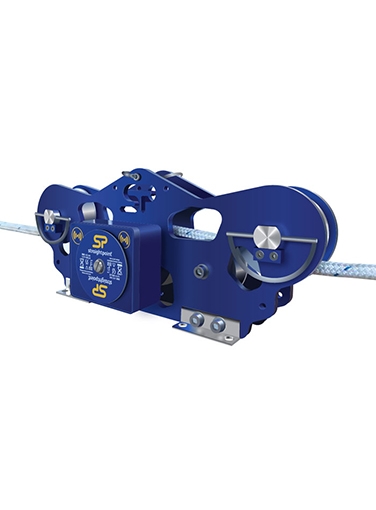

Straightpoint CableSafe Rope Tension Meter
The Straightpoint CableSafe Rope Tension Meter is the continued evolution of SP’s running line tensiometers. Compatible with a wide range of rope and electrical cable diameters – 4-30mm. When using a capstan winch to unwind electrical cable from a reel/spool, you will be able to integrate the CableSafe within this setup to ensure that it is being pulled at a safe tension level. This helps the line maintain its transmissions capability, prevent it from becoming a fire hazard risk, and it also stops the need for furthering work in order to remove and replace it. The contractor is gifted with decreased liability and dramatically increased peace of mind.
- Remote monitoring & recording using FREE smart phone App via Bluetooth
- HHP App offers realtime display of data (with user-selected units of Te, Kg, kN, and Lb)
- HHP App also offers continuous datalogging into a user-named file
- For use on line speeds up to 2000 Ft/min (600 meters/min)
- For rope diameters from 0.157" up to 1.250" (4-30mm) - several capacities
- IP67/NEMA 6 Protection for use in all weather conditions
- Operated on 4 x AA standard Alkaline Batteries
- Fully constructed from light and durable brushed Anodised Aluminium
- Five Sheave (roller) design simplifies material threading and insures highest possible accuracy
- Linchpins are fitted to the top sheave pins make wire rope installation quick and simple
- Maintenance-free heavy duty needle bearings
- Bluetooth connection to app on smart mobile device to remotely monitor tension
- Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
|
