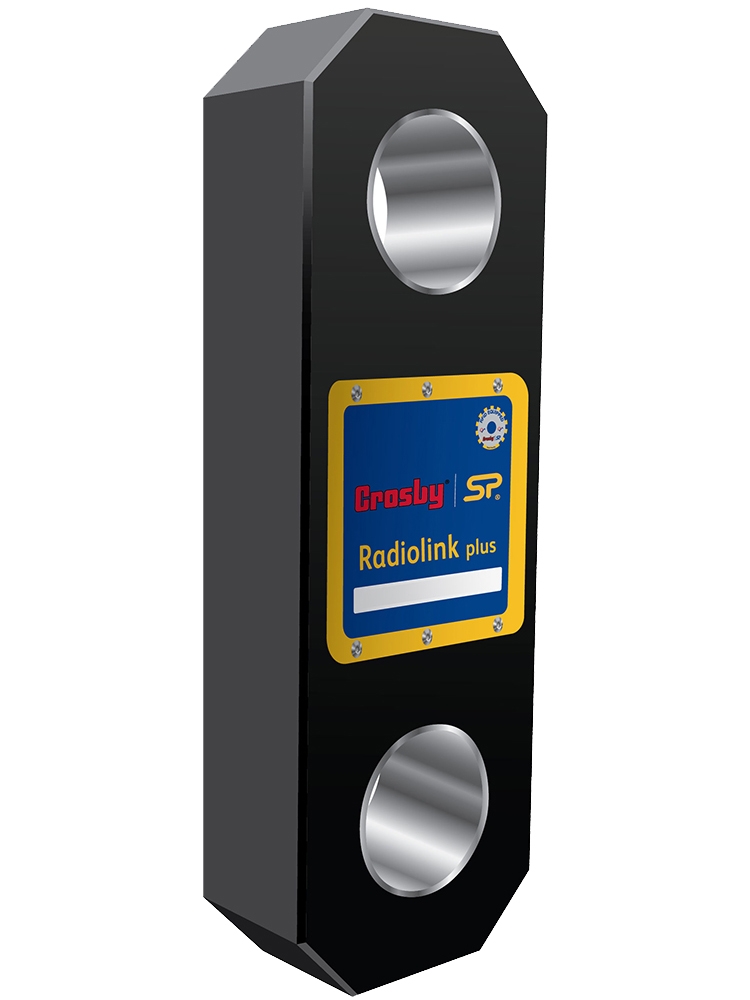

Straightpoint CP1T-BLE RadioLink Compound Plus Wireless Bluetooth Dynamometer, 2,200 lb / 1te, Resolution of 0.5Kg / 1Lb supplied without shackles - 2789005
The Straightpoint CP1T-BLE RadioLink Compound Plus Wireless Bluetooth Dynamometer, 2,200 lb / 1te, Resolution of 0.5Kg / 1Lb supplied without shackles - 2789005 is designed for weighing and dynamic load monitoring in a wide range of applications. All Compound Plus Dynamometers are supplied with 2.4GHz Wireless Output for connection to the optional battery-powered SW-HHP Handheld Display or INSIGHT Multiple Wireless Loadcell Software. There is also a version "-BLE" providing a Bluetooth Output for connection to the no-cost HHP App for Apple and Android Phones and Tablets.
Supplied with a Traceable Calibration Certificate Accuracy of 0.1% full scale with a safety factor of 4:1 up to 12:1 (depends on capacity) 2.4GHz Wireless Output for connection to the optional battery-powered SW-HHP Handheld Display or SW-MWLC Multiple Wireless Loadcell Software 2.4GHz Wiresless Output features a transmission distance of 2300 Ft (700 meters) "-BLE" Bluetooth Output for connection to the no-cost HHP App for Apple and Android Phones and Tablets. The Bluetooth Output features a transmission distance of 328 Ft (100 meters) Compound Plus Housing is IP 67 Rated (NEMA6) for use in the harshest indoor & outdoor environments Battery life of 1200 hours continuous use using 4x AA Alkaline Batteries DNV Type Approval (DNVGL-ST-0378 Standard for offshore and platform lifting appliances) Uses powerful "internal" antenna eliminating the possibility to damage it Uses standard Crosby Shackles, optional Warranty 1-Year (FREE Extension to 2-Years with Product Registration) Made in the UK
Accuracy
±0.1% full scale
Safety Factor
4
Battery Life
1200 Hrs (continuous use)
Battery Type
Remote Display 2 x AA / Loadcell 4 x AA
Display Type
6 digit 0.9 inch LCD (22mm)
Operating Temp
14°F to 122°F (-10°C to +50°C)
Radio Frequency
2.4GHz
Wireless Range
2300 feet (700 meters)
Bluetooth Range
328 Ft (100 meters), requires "-BLE" version with Bluetooth output
Data Transmission Rate
3Hz up to 200Hz can be ordered for dynamic load monitorning applications
Housing Protection Sensor
IP67 / NEMA 6 (Waterproof)
Warranty
Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
More Information
Product Specifications
Accuracy
±0.1% full scale
Safety Factor
4
Battery Life
1200 Hrs (continuous use)
Battery Type
Remote Display 2 x AA / Loadcell 4 x AA
Display Type
6 digit 0.9 inch LCD (22mm)
Operating Temp
14°F to 122°F (-10°C to +50°C)
Radio Frequency
2.4GHz
Wireless Range
2300 feet (700 meters)
Bluetooth Range
328 Ft (100 meters), requires "-BLE" version with Bluetooth output
Data Transmission Rate
3Hz up to 200Hz can be ordered for dynamic load monitorning applications
Housing Protection Sensor
IP67 / NEMA 6 (Waterproof)
Warranty
Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
Product Features
Supplied with a Traceable Calibration Certificate Accuracy of 0.1% full scale with a safety factor of 4:1 up to 12:1 (depends on capacity) 2.4GHz Wireless Output for connection to the optional battery-powered SW-HHP Handheld Display or SW-MWLC Multiple Wireless Loadcell Software 2.4GHz Wiresless Output features a transmission distance of 2300 Ft (700 meters) "-BLE" Bluetooth Output for connection to the no-cost HHP App for Apple and Android Phones and Tablets. The Bluetooth Output features a transmission distance of 328 Ft (100 meters) Compound Plus Housing is IP 67 Rated (NEMA6) for use in the harshest indoor & outdoor environments Battery life of 1200 hours continuous use using 4x AA Alkaline Batteries DNV Type Approval (DNVGL-ST-0378 Standard for offshore and platform lifting appliances) Uses powerful "internal" antenna eliminating the possibility to damage it Uses standard Crosby Shackles, optional Warranty 1-Year (FREE Extension to 2-Years with Product Registration) Made in the UK
