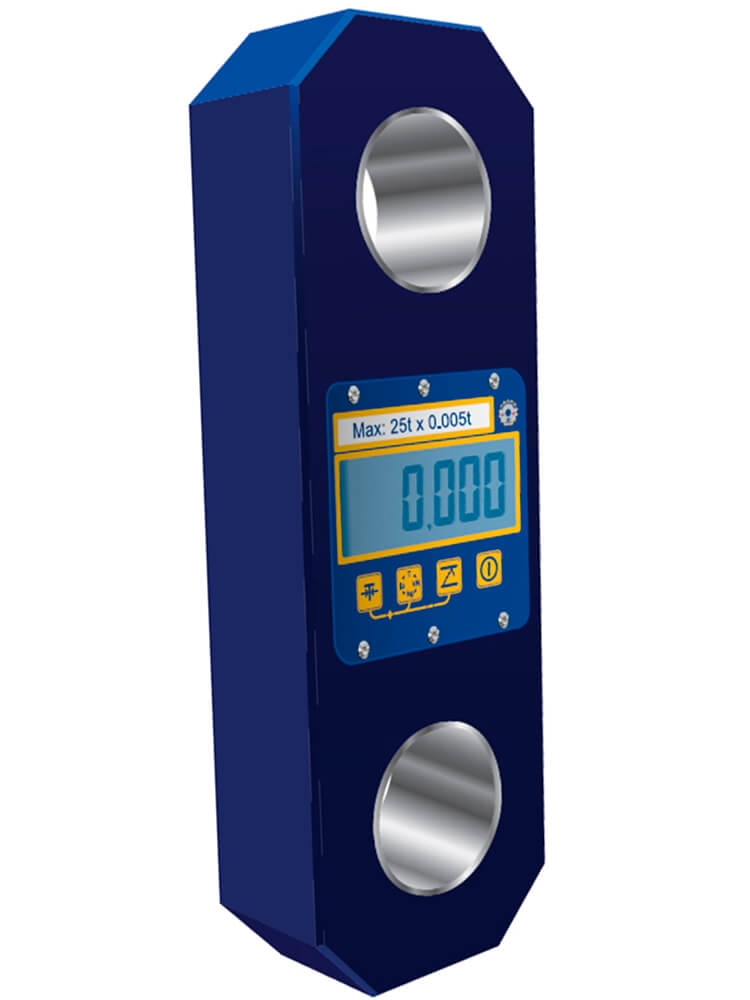

The Straightpoint LoadLink Plus Digital Dynamometer Tension Loadcell is designed for weighing and dynamic load monitoring in a wide range of applications. It has been in production and supplied globally to the lifting and rigging industry since 1979. The Loadlink plus has an easy to read LCD display and push button operation for a host of features demanded by operators worldwide.
90 db Audible Set Point Alarm to warn operator of overload
RS-485 Serial Output to connect to Handheld plus or Desktop Controller
Designed for use with standard Crosby or Green Pin Shackles
Complete Design of load cell has been validated by Finite Element Analysis
"-WS" models are supplied with two (2) shackles, refer to BUY NOW Section at bottom of page
Bluetooth Option allows user to use Free App for wither Android or IOS Smarphones to view, log and transfer data via email or text. This eliminates the need for using a separate Hand-Held indicator.
DNV Type Approval (DNVGL-ST-0378 Standard for offshore and platform lifting appliances)
Environmental protection rating of IP65 / NEMA5
Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
1-Year (FREE Extension to 2-Years with Product Registration)
Product Features
Large easy to read LCD Display
High Accuracy of 0.1% full scale
Selectable Units - t, lbs, kg or kN
High Resolution, 5000 divisions as standard
Peak Hold 100Hz peak force analysis
Tare and Preset tare
Lightweight due to aluminum construction
Overload Counter ideal for rental industry
90 db Audible Set Point Alarm to warn operator of overload
RS-485 Serial Output to connect to Handheld plus or Desktop Controller
Designed for use with standard Crosby or Green Pin Shackles
Complete Design of load cell has been validated by Finite Element Analysis
"-WS" models are supplied with two (2) shackles, refer to BUY NOW Section at bottom of page
Bluetooth Option allows user to use Free App for wither Android or IOS Smarphones to view, log and transfer data via email or text. This eliminates the need for using a separate Hand-Held indicator.
DNV Type Approval (DNVGL-ST-0378 Standard for offshore and platform lifting appliances)
Environmental protection rating of IP65 / NEMA5
Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
