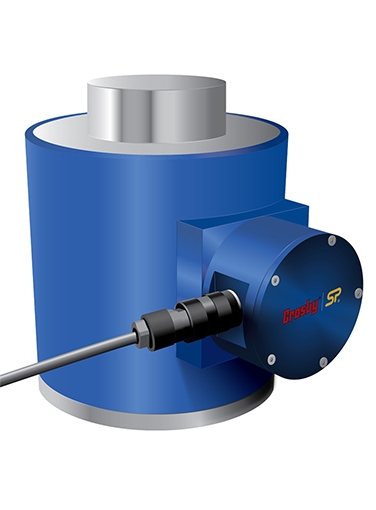

StraightPoint NI-Compression Wired Compression Load Cell
The StraightPoint NI-Compression Wired Compression Load Cell is available in ranges from 5te to 1000te. Straightpoint compression load cells are manufactured to the same stringent standards as all Straightpoint products. The bodies are machined from high grade stainless steel, offering excellent strength and anti-corrosion properties. Compression load cells can be supplied with optional loadcaps to protect objects being tested. The compact lightweight design provides ease of use and superior portability, allowing Straightpoint compression load cells to be used in a broad range of industries including mining, energy, defence, heavy rigging, shipping, and general transportation sectors.
- Accuracy of 0.1% Full Scale
- Environmentally sealed to IP67/NEMA6
- Machined from high grade stainless steel with 3:1 Safety Factor
- Supplied with 10-meter length (30 ft) connection cable, standard
- Analog outputs or connection to HHP Hand-Held Indicator
- SA-3420 External Amplifier (optional) provides 4-20mA, 0-10v, 0-5v for PLC or data logger
- Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
|
