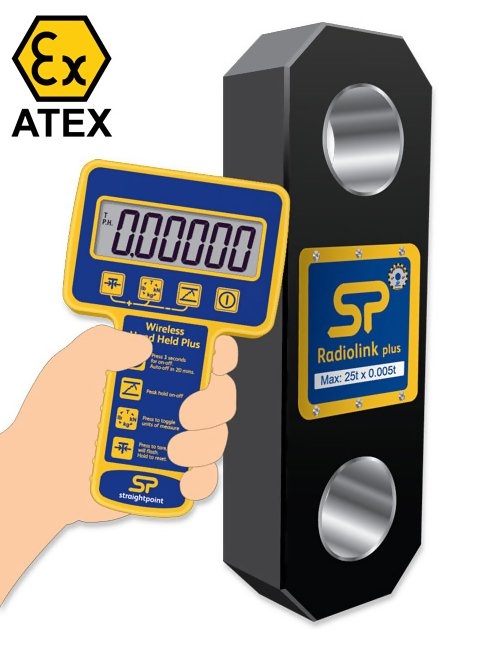

Straightpoint RLP35T-ATEX Radiolink Plus Wireless Dynamometer with Remote Display, 77,000 lb / 35te - ATEX Certified - 2789078
The Straightpoint RLP35T-ATEX Radiolink Plus Wireless Dynamometer with Remote Display, 77,000 lb / 35te - ATEX Certified - 2789078 is approved to Ex ia II C T4 Ga for use in zone 0,1 & 2 hazardous areas. This intrinsically safe version of the bestselling Radiolink plus is capable of both weighing and dynamic load monitoring in hazardous environments such as on and offshore oil, gas and chemical industries. Available from stock in capacities from 1t to 300t, constructed from high-quality aircraft-grade aluminium and featuring an advanced internal design structure.Paired with the SP Ex Handheld you can read up to four SP Ex load cells simultaneously allowing the operator to monitor a multi pick point lift from a single handheld at safe distances of up to 500m/1640ft with the added benefits of on-screen overload and calibration due warnings.
All models are supplied with a Traceable Calibration Certificate ATEX Certified approved for use in hazardous zones 2, 1 and 0 All Radiolink Plus ATEX Dynamometers are Environmentally Sealed, IP67 / NEMA 6 Rated (Waterproof) All Radiolink Plus ATEX Dynamometers are supplied with the battery-powered SW-HHP-ATEX Handheld Remote Display 2.4 GHz Wireless with Industry Leading Wireless Range of 2300 ft (700 meters) User-selctable units (Lbs, Kg, kN, Tonne) with highest resolution SW-HHP-ATEX Hand-Held Display includes remote On/Off, peak hold and pre-set tare functions SW-HHP-ATEX Hand-Held Remote Display has ATEX/IECEx Ex ia IIC T4 Ga Zone 0 rating (IECEx SIR 15.0072X / Sira 15ATEX2196X) Long Battery Life - Remote Display 60 Hrs / Loadcell 1200 Hrs continuous use Internal Antennae Design validated by Finite Element Analysis (FEA) "-WS" models are supplied with two (2) shackles, refer to BUY NOW Section at bottom of page Warranty 1-Year (FREE Extension to 2-Year Warranty with Product Registration) Made in the UK
Approval Spec
Ex ia II C T4 Ga for use in zone 2, 1 & 0
Battery Type
Remote Display 2 x AA / Loadcell 4 x AA
Battery Life
Remote Display 400Hrs / Loadcell 1200Hrs continuous
Accuracy
+/- 0.1% of Full Scale
Wireless Range
2300 Feet (700 metres)
Display Type
6 digit LCD 0.9 inch height (22mm)
Operating Temp
14°F to 122°F (-10 to +50 °C)
Radio Frequency
2.4GHz
Data Transmission Rate
3Hz up to 200Hz can be ordered for dynamic load monitorning applications
Protection
IP67 / NEMA 6
More Information
Product Specifications
Approval Spec
Ex ia II C T4 Ga for use in zone 2, 1 & 0
Battery Type
Remote Display 2 x AA / Loadcell 4 x AA
Battery Life
Remote Display 400Hrs / Loadcell 1200Hrs continuous
Accuracy
+/- 0.1% of Full Scale
Wireless Range
2300 Feet (700 metres)
Display Type
6 digit LCD 0.9 inch height (22mm)
Operating Temp
14°F to 122°F (-10 to +50 °C)
Radio Frequency
2.4GHz
Data Transmission Rate
3Hz up to 200Hz can be ordered for dynamic load monitorning applications
Protection
IP67 / NEMA 6
Product Features
All models are supplied with a Traceable Calibration Certificate ATEX Certified approved for use in hazardous zones 2, 1 and 0 All Radiolink Plus ATEX Dynamometers are Environmentally Sealed, IP67 / NEMA 6 Rated (Waterproof) All Radiolink Plus ATEX Dynamometers are supplied with the battery-powered SW-HHP-ATEX Handheld Remote Display 2.4 GHz Wireless with Industry Leading Wireless Range of 2300 ft (700 meters) User-selctable units (Lbs, Kg, kN, Tonne) with highest resolution SW-HHP-ATEX Hand-Held Display includes remote On/Off, peak hold and pre-set tare functions SW-HHP-ATEX Hand-Held Remote Display has ATEX/IECEx Ex ia IIC T4 Ga Zone 0 rating (IECEx SIR 15.0072X / Sira 15ATEX2196X) Long Battery Life - Remote Display 60 Hrs / Loadcell 1200 Hrs continuous use Internal Antennae Design validated by Finite Element Analysis (FEA) "-WS" models are supplied with two (2) shackles, refer to BUY NOW Section at bottom of page Warranty 1-Year (FREE Extension to 2-Year Warranty with Product Registration) Made in the UK
