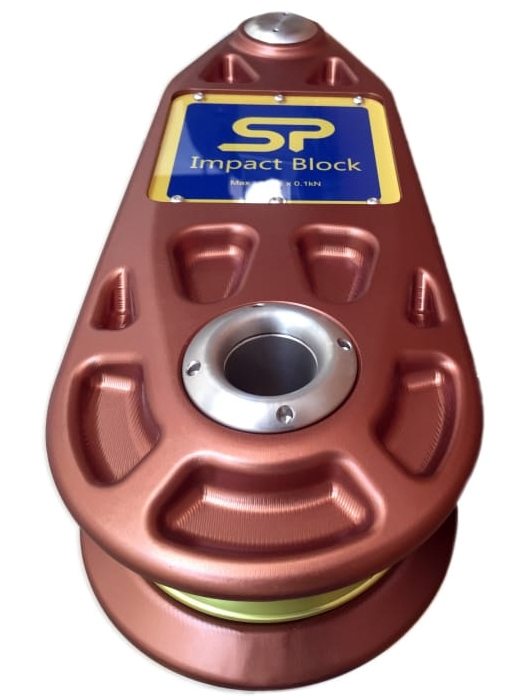

Straightpoint WIB Wireless Arborist Impact Block Load Cell
The Straightpoint WIB Wireless Arborist Impact Block Load Cell is the designed to deliver the best performance in terms of alignment, resistance and appeal. The aesthetic curves of the Impact Block combines beauty, strength and durability to ensure a rope friendly surface. Coupled with wireless dynamic load monitoring electronics and strain gauge technology from Straightpoint and providing real time data to either handheld controller or logging via our INSIGHT software to tablet or laptop, it is easy to see why this is one of the most sought after products in the industry.

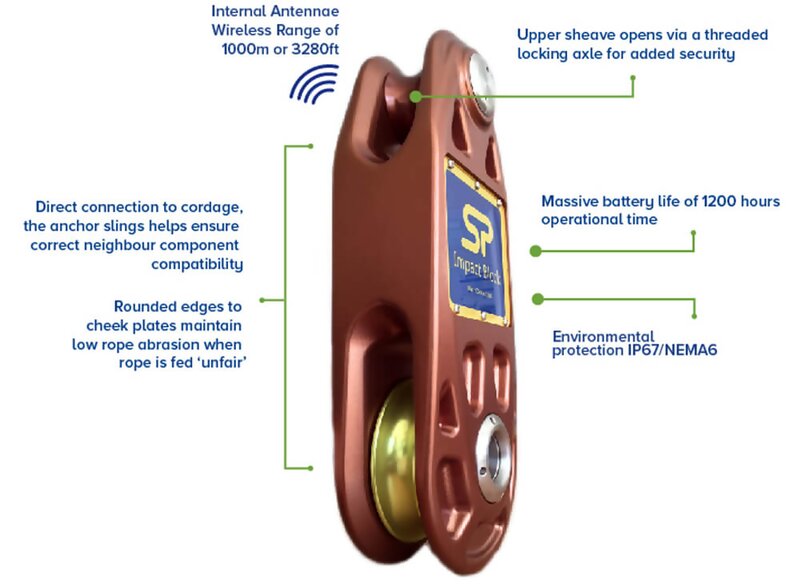

Accuracy of 0.1% full scale with 5:1 Safety Factor Waterproof for use in all weather conditions, housing protection of IP67 or NEMA6 Rounded edges to cheek plates maintain low rope abrasion when rope is fed unfair Upper sheave opens via a threaded locking axle for added security Thrust surfaces increase tolerance to external loading of spindle and anchor pin Direct connection to cordage, the anchor slings helps ensure correct neighbour component compatibility 1000m (3280 ft) wireless range enabling operator to stand at safe distance 2.4GHz Wireless battery life of 1200 hours with 500 Hrs for Bluetooth version Wireless Hand-Held Indicator or data logging software via 2.4 GHz wireless connection - 50 samples/sec Bluetooth version offered for connection to free App on smartphones & tablets - 3 samples/sec Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
Capacity
6 tons / 60 kN / 13,227 lbs
Resolution
0.01 t / 0.1kN / 20 Lbs
Accuracy
±0.1% full scale
Safety factor
5
Battery Type
4x AA Alkaline
Battery Life - 2.4Ghz Wireless
1200 Hrs, continuous use
Battery Life - Bluetooth
500 Hrs, continuous use
Operating Temp
-10 to 50 C / 14 to 122 F
Wireless Frequency
2.4GHz
Transmission Distance (2.4GHz)
1000 meters (3280 ft), line-of-sight
Transmission Distance (Bluetooth)
100 meters (328 ft)
Data Sampling Rate (2.4GHz)
50Hz (standard) up to 200Hz (optional) for dynamic load monitoring applications
Data Sampling Rate (Bluetooth)
3Hz (= 3 samples/second)
Environmental Protection
IP67 or NEMA6
Max Rope Diameter
20 mm (3/4")
Weight
6kg / 13 lb
Dimensions
13.7” x 5.16” x 3.5” (348 x 131 x 89 mm) download detailed dimensional drawing below
Straightpoint WIB Wireless Arborist Impact Block Load Cell Proof test certificate Operator Manual Carry/Storage Case RFID Tagged
More Information
Product Specifications
Capacity
6 tons / 60 kN / 13,227 lbs
Resolution
0.01 t / 0.1kN / 20 Lbs
Accuracy
±0.1% full scale
Safety factor
5
Battery Type
4x AA Alkaline
Battery Life - 2.4Ghz Wireless
1200 Hrs, continuous use
Battery Life - Bluetooth
500 Hrs, continuous use
Operating Temp
-10 to 50 C / 14 to 122 F
Wireless Frequency
2.4GHz
Transmission Distance (2.4GHz)
1000 meters (3280 ft), line-of-sight
Transmission Distance (Bluetooth)
100 meters (328 ft)
Data Sampling Rate (2.4GHz)
50Hz (standard) up to 200Hz (optional) for dynamic load monitoring applications
Data Sampling Rate (Bluetooth)
3Hz (= 3 samples/second)
Environmental Protection
IP67 or NEMA6
Max Rope Diameter
20 mm (3/4")
Weight
6kg / 13 lb
Dimensions
13.7” x 5.16” x 3.5” (348 x 131 x 89 mm) download detailed dimensional drawing below
Product Features
Accuracy of 0.1% full scale with 5:1 Safety Factor Waterproof for use in all weather conditions, housing protection of IP67 or NEMA6 Rounded edges to cheek plates maintain low rope abrasion when rope is fed unfair Upper sheave opens via a threaded locking axle for added security Thrust surfaces increase tolerance to external loading of spindle and anchor pin Direct connection to cordage, the anchor slings helps ensure correct neighbour component compatibility 1000m (3280 ft) wireless range enabling operator to stand at safe distance 2.4GHz Wireless battery life of 1200 hours with 500 Hrs for Bluetooth version Wireless Hand-Held Indicator or data logging software via 2.4 GHz wireless connection - 50 samples/sec Bluetooth version offered for connection to free App on smartphones & tablets - 3 samples/sec Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
Downloads
