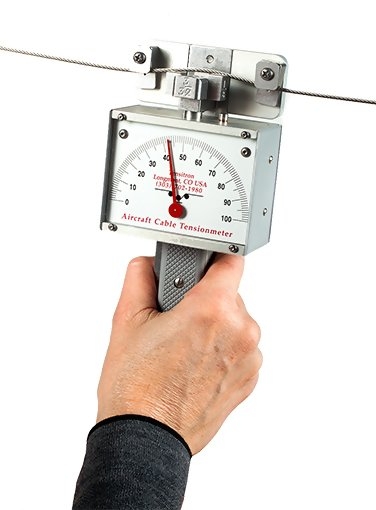

Tensitron ACM-400 Mechanical Aircraft Cable Tension Meter, 40-400 lbs, Cable Selection 3/32", 1/8", 5/32", 3/16"
The Tensitron ACM-400 Mechanical Aircraft Cable Tension Meter, 40-400 lbs, Cable Selection 3/32", 1/8", 5/32", 3/16" is a precision instrument that quickly and easily verify accurate cable tension. No more fumbling with risers with the built-in cable selection. Plus, calibration charts are attached to the meter. Tensitron ACM Aircraft Cable Mechanical Tension Meter is durable and made of non-corrosive material, and its compact design allows access to small spaces.
Quick, easy, one-handed operation Lightweight, portable Built-in cable selection no loose, separate risers Calibration chart is attached to the meter, easily accessible during use Memory Lock Pointer holds readings taken in hard-to-reach areas Compact design allows access to small spaces Durable construction Lightweight, portable Measures stationary materials only Textured handle for secure grip
Dimensions all ACM models except ACM-600
8.24" x 3.38" x 1.56"
Dimensions for ACM-600 only
8.24" x 5.20" x 1.56"
Full Scale Accuracy for ACM-100, ACM-200 and ACM-150-CWT*
4%
Full Scale Accuracy for ACM-300, ACM-400 and ACM-300-CWT*
6%
Full Scale Accuracy for ACM-600*
8%
Operating Temperature
32º F to 120 F.
Storage Temperature
20º F to 158 F.
Ambient Humidity
10% to 90% non-condensing
Weight
1.5 lb. (depending upon instrument configuration)
Environment
Indoor or outdoor use, dust-free environment
More Information
Product Specifications
Dimensions all ACM models except ACM-600
8.24" x 3.38" x 1.56"
Dimensions for ACM-600 only
8.24" x 5.20" x 1.56"
Full Scale Accuracy for ACM-100, ACM-200 and ACM-150-CWT*
4%
Full Scale Accuracy for ACM-300, ACM-400 and ACM-300-CWT*
6%
Full Scale Accuracy for ACM-600*
8%
Operating Temperature
32º F to 120 F.
Storage Temperature
20º F to 158 F.
Ambient Humidity
10% to 90% non-condensing
Weight
1.5 lb. (depending upon instrument configuration)
Environment
Indoor or outdoor use, dust-free environment
Product Features
Quick, easy, one-handed operation Lightweight, portable Built-in cable selection no loose, separate risers Calibration chart is attached to the meter, easily accessible during use Memory Lock Pointer holds readings taken in hard-to-reach areas Compact design allows access to small spaces Durable construction Lightweight, portable Measures stationary materials only Textured handle for secure grip
