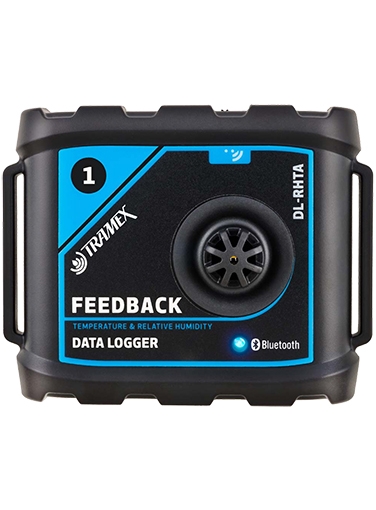

Tramex DL-RHTA Feedback DataLogger
The Tramex DL-RHTA Feedback DataLogger is designed and developed by Tramex for professionals who depend on accurate, reliable readings using the very best, state of the art technology. The Feedback DataLogger and App log up to 100,000 data point entries for relative humidity, temperature, dew point and grains per pound, transmitted wirelessly via Bluetooth BLE technology to your mobile device. On the App you can visualise Live Readings, Thermal Conditions and Psychrometric Charts as well as creating and exporting spreadsheets, charts and reports. The Tramex Feedback DataLogger requires the Tramex Feedback Data Logger App and a compatible iOS or Android mobile device.
Bluetooth BLE enabled for use with mobile devices Up to 100,000 data point entries. Instant set up and start modes Precise Ambient Relative Humidity and Temperature logging Intuitive and instructive App interface Adjustable Interactive chart, spreadsheet, report and easy export functions Connectivity up to 165ft (50 meters) for highly accessible data downloads Supported measurements: Ambient Relative Humidity, Temperature, Dew point, Grains per pound Psychrometric chart showing Relative Humidity, Specific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point Contact Temperature, Estimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional contact Temperature Probe)
Size
3.94” x 3.54” x 1.38” (100mm x 90mm x35mm)
Weight
3.53oz (100g)
Construction ABS enclosure Power
1 x AA type battery 1.5 Volt
Memory
100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
Logging Rate
Logger interval adjustable between 5 minutes and 1 hour
Transmission Range
Up to 165ft (50m) line-of-sight Bluetooth
Humidity Range
0 to 100%RH
Humidity Accuracy
±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Humidity Resolution
0.1% over the complete range
Humidity Drift
<0.25%RH per year
Temperature Range
-40ºF to 257ºF (-40ºC to 125ºC)
Temperature Accuracy
±0.1ºF Range 68ºF to 140ºF (±0.1 ºC Range 20ºC to 60ºC)
Temperature Sensor Protection
PTFE Film protects sensor opening from water & dust Drift
Power supply
1 x AA type battery 1.5 Volt
Battery life
Over 1 year based on logging intervals of 5mins, using an alkaline battery with a nominal voltage of 1.5V as supplied
More Information
Product Specifications
Size
3.94” x 3.54” x 1.38” (100mm x 90mm x35mm)
Weight
3.53oz (100g)
Construction ABS enclosure Power
1 x AA type battery 1.5 Volt
Memory
100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
Logging Rate
Logger interval adjustable between 5 minutes and 1 hour
Transmission Range
Up to 165ft (50m) line-of-sight Bluetooth
Humidity Range
0 to 100%RH
Humidity Accuracy
±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Humidity Resolution
0.1% over the complete range
Humidity Drift
<0.25%RH per year
Temperature Range
-40ºF to 257ºF (-40ºC to 125ºC)
Temperature Accuracy
±0.1ºF Range 68ºF to 140ºF (±0.1 ºC Range 20ºC to 60ºC)
Temperature Sensor Protection
PTFE Film protects sensor opening from water & dust Drift
Power supply
1 x AA type battery 1.5 Volt
Battery life
Over 1 year based on logging intervals of 5mins, using an alkaline battery with a nominal voltage of 1.5V as supplied
Product Features
Bluetooth BLE enabled for use with mobile devices Up to 100,000 data point entries. Instant set up and start modes Precise Ambient Relative Humidity and Temperature logging Intuitive and instructive App interface Adjustable Interactive chart, spreadsheet, report and easy export functions Connectivity up to 165ft (50 meters) for highly accessible data downloads Supported measurements: Ambient Relative Humidity, Temperature, Dew point, Grains per pound Psychrometric chart showing Relative Humidity, Specific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point Contact Temperature, Estimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional contact Temperature Probe)
