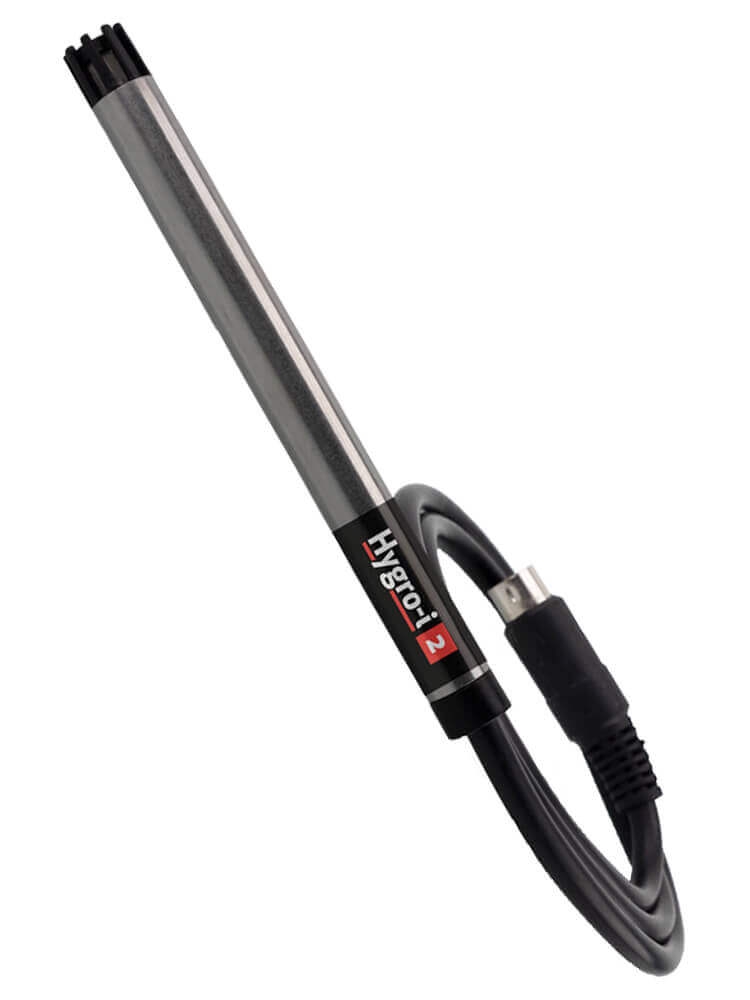

Tramex RHP-SW-B Relative Humidity Probes with Bayonet Connection for use with Feedback Datalogger RHTX and CMEX5
- Fast Acclimation and Temperature response time
- Proven robustness, Durable and Reusable
- Best in class accuracy and reliable, even at high RH >90%
- Measures giving in situ relative humidity and ambient RH, temperature, dew point temperature & grains per pound
- Relative Humidity range: 0% to 100%
- Temperature Range: -40F to 176F (-40C to 80C)
- Best temperature accuracy of +/-2 over 32F to 194F (0C to 90 C)
| Range |
0 → 100%RH
|
| Accuracy |
0% → 99%RH ±2.0%RH (@ 77°F (25°C))
|
| Resolution |
0.1% over the complete range
|
| Drift |
<0.25%RH per year
|
| Range |
-40°F → 257°F (-40°C → 125°C)
|
| Accuracy |
±0.1°F Range 68°F → 140°F (±0.1 °C Range 20°C → 60°C)
|
| Sensor Protection |
PTFE Film protects sensor opening from water & dust
|
| Drift |
<0.04°F (0.03°C) per year
|
| NIST traceable |
(National Institute of Standards and Technology) |
More Information
| Product Specifications |
| Range |
0 → 100%RH
|
| Accuracy |
0% → 99%RH ±2.0%RH (@ 77°F (25°C))
|
| Resolution |
0.1% over the complete range
|
| Drift |
<0.25%RH per year
|
| Range |
-40°F → 257°F (-40°C → 125°C)
|
| Accuracy |
±0.1°F Range 68°F → 140°F (±0.1 °C Range 20°C → 60°C)
|
| Sensor Protection |
PTFE Film protects sensor opening from water & dust
|
| Drift |
<0.04°F (0.03°C) per year
|
| NIST traceable |
(National Institute of Standards and Technology) |
|
| Product Features |
- Fast Acclimation and Temperature response time
- Proven robustness, Durable and Reusable
- Best in class accuracy and reliable, even at high RH >90%
- Measures giving in situ relative humidity and ambient RH, temperature, dew point temperature & grains per pound
- Relative Humidity range: 0% to 100%
- Temperature Range: -40F to 176F (-40C to 80C)
- Best temperature accuracy of +/-2 over 32F to 194F (0C to 90 C)
|
