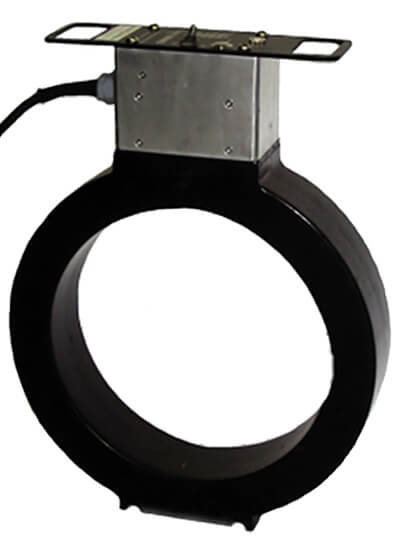

Western Instruments WS-Series Pulsed Drill Pipe Magnetizing MPI Coils

SKU

ProductID-2002

Grouped product items
Product Name	Qty
Western Instruments WS-8 Magnetizing Pulsed DC Drill Pipe Coil, 8" (201mm), 14lbs (7kg ), 15 Amps 115V/60Hz $3,885.00
Western Instruments WS-10 Magnetizing Pulsed DC Drill Pipe Coil, 10" (254mm), 16lbs (8kg ), 15 Amps 115V/60Hz $5,195.00
Western Instruments WS-12 Magnetizing Pulsed DC Drill Pipe Coil, 12" (305mm), 18lbs (8.5kg ), 15 Amps 115V/60Hz $5,640.00
Western Instruments WS-14 Magnetizing Pulsed DC Drill Pipe Coil, 14" (355mm), 19lbs (8.6kg ), 15 Amps 115V/60Hz $6,975.00
Western Instruments WS-8K Magnetizing Pulsed DC Drill Pipe Coil, 8" (201mm), 14lbs (7kg ), 15 Amps 230V 50Hz (Inrush Current) $4,330.00
Western Instruments WS-10K Magnetizing Pulsed DC Drill Pipe Coil, 10" (254mm), 16lbs (8kg ), 15 Amps 230V 50Hz (Inrush Current) $5,640.00
Western Instruments WS-12K Magnetizing Pulsed DC Drill Pipe Coil, 12" (305mm), 18lbs (8.5kg ), 15 Amps 230V 50Hz (Inrush Current) $6,085.00
Western Instruments WS-14K Magnetizing Pulsed DC Drill Pipe Coil, 14" (355mm), 19lbs (8.6kg ), 15 Amps 230V 50Hz (Inrush Current) $7,420.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The Western Instruments WS-Series Pulsed Drill Pipe Magnetizing MPI Coils is list of Portable MPI Equipment. These powerful yet extremely light MPI Coils meet many applicable specifications for MPI. The WS-Series use Western Instruments' innovative Capacitive Discharge Power Supply. The unique WS power supply provides the necessary energy pulse to provide an output of 1,200 Amp Turns per inch of ID and more specifically greater than 400 Gauss in the Center of the Coil. These outputs are common to all four models: WS-8, WS-10, WS-12 and WS-14, while all remain under 20 pounds (9kg)
