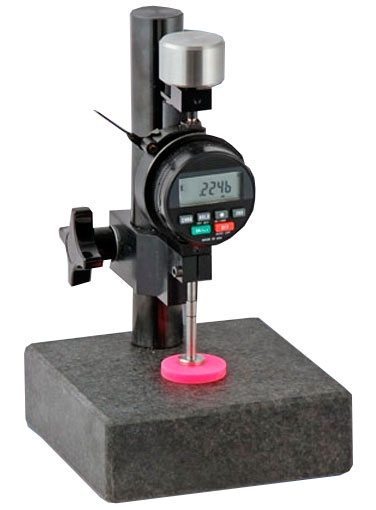

The Checkline MTG Material Thickness Gauge for Textiles, Non-wovens, Fabrics & Soft Materials is an instrument that accurately measures thickness of textiles, non-wovens, technical fabrics and many other materials. Using specific diameter presser foot (feeler) and mass (weight) it can measure according to ASTM D1777, D461, D3767, D751-06, ISO 9863-1 and many other international testing standards. The MTG thickness tester features adjustable air dampening to ensure the presser foot is lowered at the same rate every time for excellent repeatability. The MTG System is supplied with a 16 mm diameter pressor foot and 212 g mass. This configuration is commonly used for measurement of rubber materials with a hardness of 35 IRHD or below. Optional presser foot diameters and related weights are available and custom sizes can be supplied to accommodate your specifications. The certified digital indicator includes 3 SPC data output formats, English or Metric display, auto power off, and a left-hand lifting lever. The indicator is fitted on an 8 inch (200 mm) tall column to allow the indicator to be raised or lowered to accommodate different size test specimens. The 6"x6"x 2" (150 x 160 x 50 mm) laboratory grade certified granite base offers a smooth and extremely hard reference plane for precise and repeatable measurements. For those requiring data output for recording and quality documentation purposes, a serial output cable and windows-based software program is optionally available. Custom Weights and Footer can be made to meet a wide range of specifications.
The MTG System is supplied with a 16 mm diameter pressor foot and 212 g mass. This configuration is commonly used for measurement of rubber materials with a hardness of 35 IRHD or below
The MTG System is supplied with a 16 mm diameter pressor foot and 212 g mass. This configuration is commonly used for measurement of rubber materials with a hardness of 35 IRHD or below
Range
0-1 inch (0-25 mm)
Product Features
User-selected units of inch or mm providing resolution of 0.0001" (0.002 mm)
Digital Indicator is battery-powered and Auto Power Off functions.
Air Dampening feature allows for a repeatable, controlled rate of descent on to sample
Electronic Indicator and Granite Base are supplied with traceable certification
Custom diameter feet and weights can be supplied to apply the correct pressure (kPA) for your application
Three outputs are provided for data transfer; RS-232, Mitutoyo (MTI) and BCD. Cable and Software are offered as an option
Supplied with 16 mm footer with 212g mass. Other footer diameters and weight sets are available. See below
Optional "swivel" connectors insures optimal alignment with test sample for the highest possible accuracy & repeatability
SoftwareWe recommend WinWedge Software for the MTG
