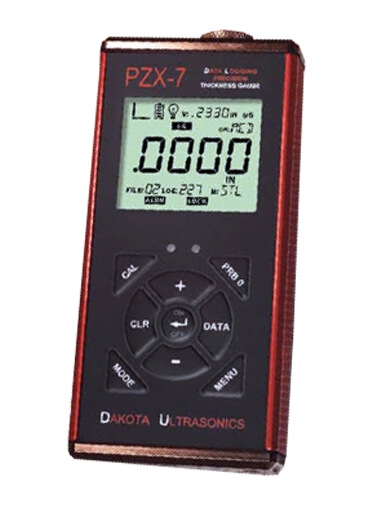

Dakota Ultrasonics PZX-7DL Data-Logging Precision Ultrasonic Wall Thickness Gauge Z-308-0001 with T-402-5507 Probe with Built-in Datalogger
The Dakota Ultrasonics PZX-7DL Data-Logging Precision Ultrasonic Wall Thickness Gauge Z-308-0001 with T-402-5507 Probe with Built-in Datalogger is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments. The built-in datalogger has a capacity of 10,000 data values stored in up to 40 batches with 250 values/batch which is transferred via the USB port using the supplied cable. The Dakota Ultrasonics PZX-7DL Data-Logging Precision Ultrasonic Wall Thickness Gauge Z-308-0001 does not require any software, it will be shown as a drive when connected to a PC allowing convenient drag-n-drop into your program of choice. Data is saved in a comma deliminated file format (.csv) which makes it compatible with all programs and software. The PZX-7DL has measuring range in steel from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E)when measuring thicker materials, For measurement of plastics, the user would select Plastic Mode (PLAS) and use the option Graphite Delay Line Tip (p/n X-633-0000).
Large, backlit LCD display retains last reading Resolution of 0.0001 inch (0.001 mm) with Selectable units of inch or mm Includes NIST Traceable Calibration Certificate IP 65 Rated for protection even in the toughest field conditions 5 Year Warranty, CE-Certified and Made in USA Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed Adjustable GAIN (AGC) in 5 steps to fine tune the gauge for use on challenging materials or applications Can be used with both Single Element Delay Line and contact transducers (5 to 20MHz) LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units Operates on two (2) AA Batteries - 45 hours continuous operation Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity Built-in datalogging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output Powered by: 120MHz FPGA timing & 100 volt spike pulser Measure Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS) Optional serial RS-232 or Bluetooth output Additional Modes Include Differential (from user-entered "nominal value"), Alarm (user-set Hi/Low Limits) and Velocity Mode
Housing Protection
IP65
Operating Temperature
USB single value only (no internal memory)TI-007DLX for a model with build-in memory for 40,000 values USB output
Cable
4 ft. (1.2 m) with Microdot/Lemo00 connector.
Output Optional
RS-232 and Bluetooth
Display Backlight
Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Velocity Range
0.0120 to .7300 in/?s (305 to 18,542 m/sec)
Display
Multi-function 7 segment 4.5 digit liquid crystal display with Back-light
Resolution
0.0001" (0.001 mm) . 0.001" (0.01 mm), user-selected units and resolution
Range with Standard Probe
0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
Battery Life
Typically operates for 35 hours on alkaline and 18 hours on NiCad
Weight
11 ounces (308 grams)
Dimensions
2.5 x 5.17 x 1.25" (64 x 131 x 32 mm)
Warranty
Gauge
Total Measuring Range (Steel)
0.006 - 36.000 inches 0.15 - 924 mm (depends on material and transducer/probe type)
Measuring Modes
Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
Gain
Automatic time dependent gain (TDG) with manual override
Probe (Standard)
1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
Probes (optional)
Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
Display Update Rate
10 Hz (10 updates/sec)
Battery Type
2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
Housing
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Certifications
NIST Traceable and MIL-STD-45662A
Keypad
Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys
Pulse Repetition Frequency (PRF)
200 Hz (200 pulses/sec)
To Lock Settings
With gauge powered off, press and hold the "+" key while powering on the gauge The LOCK icon will be illuminated on the Display
To unLock Settings
With gauge powered off, press and hold the "-" key while powering on the gauge The LOCK icon will turn off
More Information
Product Specifications
Housing Protection
IP65
Operating Temperature
USB single value only (no internal memory)TI-007DLX for a model with build-in memory for 40,000 values USB output
Cable
4 ft. (1.2 m) with Microdot/Lemo00 connector.
Output Optional
RS-232 and Bluetooth
Display Backlight
Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Velocity Range
0.0120 to .7300 in/?s (305 to 18,542 m/sec)
Display
Multi-function 7 segment 4.5 digit liquid crystal display with Back-light
Resolution
0.0001" (0.001 mm) . 0.001" (0.01 mm), user-selected units and resolution
Range with Standard Probe
0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
Battery Life
Typically operates for 35 hours on alkaline and 18 hours on NiCad
Weight
11 ounces (308 grams)
Dimensions
2.5 x 5.17 x 1.25" (64 x 131 x 32 mm)
Warranty
Gauge
Total Measuring Range (Steel)
0.006 - 36.000 inches 0.15 - 924 mm (depends on material and transducer/probe type)
Measuring Modes
Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
Gain
Automatic time dependent gain (TDG) with manual override
Probe (Standard)
1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
Probes (optional)
Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
Display Update Rate
10 Hz (10 updates/sec)
Battery Type
2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
Housing
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Certifications
NIST Traceable and MIL-STD-45662A
Keypad
Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys
Pulse Repetition Frequency (PRF)
200 Hz (200 pulses/sec)
To Lock Settings
With gauge powered off, press and hold the "+" key while powering on the gauge The LOCK icon will be illuminated on the Display
To unLock Settings
With gauge powered off, press and hold the "-" key while powering on the gauge The LOCK icon will turn off
Product Features
Large, backlit LCD display retains last reading Resolution of 0.0001 inch (0.001 mm) with Selectable units of inch or mm Includes NIST Traceable Calibration Certificate IP 65 Rated for protection even in the toughest field conditions 5 Year Warranty, CE-Certified and Made in USA Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed Adjustable GAIN (AGC) in 5 steps to fine tune the gauge for use on challenging materials or applications Can be used with both Single Element Delay Line and contact transducers (5 to 20MHz) LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units Operates on two (2) AA Batteries - 45 hours continuous operation Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity Built-in datalogging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output Powered by: 120MHz FPGA timing & 100 volt spike pulser Measure Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS) Optional serial RS-232 or Bluetooth output Additional Modes Include Differential (from user-entered "nominal value"), Alarm (user-set Hi/Low Limits) and Velocity Mode
