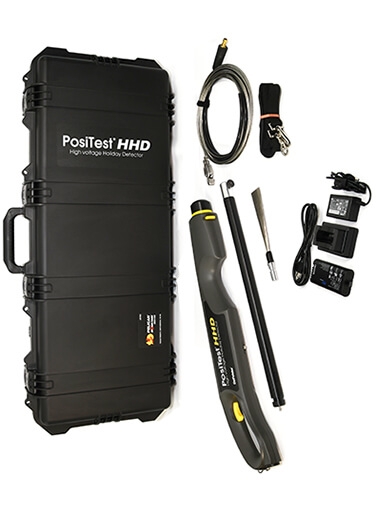

DeFelsko HHDKIT PosiTest HHD Kit High Voltage Holiday Detector

$3,845.00

SKU

HHDKIT

Skip to the beginning of the images gallery

The DeFelsko HHDKIT PosiTest HHD Kit High Voltage Holiday Detector is a precision instrument that uses pulse DC technology, offering a user-adjustable voltage range from 0.5 to 35kV for detecting holidays, pinholes and other discontinuities in coatings up to 20 mm (780 mils) thick. The PosiTest HHD is ideal for use with a wide range of rolling spring and flat wire brush electrodes.

Product Features

Easy-to-use with bright, multicolor LCD
Ready to measure comes with everything needed for testing
Audibly and visibly alerts when flaws/holidays are detected
Lightweight, ergonomic design provides comfortable all-day use, reducing fatigue
Voltage calculator feature choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage
Strobe light and loud audible alarms emitted when a holiday is detected. Audio alarm mode can be adjusted for differing environments
Removable Smart lithium-ion battery provides power for up to 40 hours of continuous measurement
Rugged, environmentally sealed ABS plastic enclosure
Weatherproof, dustproof and shockproof
Included Pelican Storm case with custom foam inserts for superior protection
Two year warranty
Press and hold Safety Trigger helps prevent accidental high voltage generation
7.6 m (25') ground (earth) cable with locking connector and spring clamp
Shock proof/creep proof internally sealed to minimize creep distance to high voltage components. Designed in accordance with IEC 61010-1.
Built-in certified voltmeter (crest meter, jeep meter) displays and regulates the voltage at the electrode
Long Form Certificate of Calibration included with each instrument
Conforms to national and international standards including ISO, ASTM and NACE

Product Specifications

Output Voltage Range	0.5 – 35 kV
Output Voltage Adjustment	0.5 kV – 1 kV
Output Accuracy	+5%
Pulse Duration	10 µs
Pulse Repetition Rate	30 Hz
Coating Thickness Range	up to 20 mm (780 mils) †
Typical Battery Life	Based on selected voltage and load Ø 12” Rolling Spring @ 10kV, 40 hrs. Ø 40” Rolling Spring @ 10kV, 30 hrs.
Operating Temperature	-20° to 60°C (-4° to 140°F)

Downloads

More Information

Product Specifications

Output Voltage Range	0.5 – 35 kV
Output Voltage Adjustment	0.5 kV – 1 kV
Output Accuracy	+5%
Pulse Duration	10 µs
Pulse Repetition Rate	30 Hz
Coating Thickness Range	up to 20 mm (780 mils) †
Typical Battery Life	Based on selected voltage and load Ø 12” Rolling Spring @ 10kV, 40 hrs. Ø 40” Rolling Spring @ 10kV, 30 hrs.
Operating Temperature	-20° to 60°C (-4° to 140°F)

Product Features

Easy-to-use with bright, multicolor LCD
Ready to measure comes with everything needed for testing
Audibly and visibly alerts when flaws/holidays are detected
Lightweight, ergonomic design provides comfortable all-day use, reducing fatigue
Voltage calculator feature choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage
Strobe light and loud audible alarms emitted when a holiday is detected. Audio alarm mode can be adjusted for differing environments
Removable Smart lithium-ion battery provides power for up to 40 hours of continuous measurement
Rugged, environmentally sealed ABS plastic enclosure
Weatherproof, dustproof and shockproof
Included Pelican Storm case with custom foam inserts for superior protection
Two year warranty
Press and hold Safety Trigger helps prevent accidental high voltage generation
7.6 m (25') ground (earth) cable with locking connector and spring clamp
Shock proof/creep proof internally sealed to minimize creep distance to high voltage components. Designed in accordance with IEC 61010-1.
Built-in certified voltmeter (crest meter, jeep meter) displays and regulates the voltage at the electrode
Long Form Certificate of Calibration included with each instrument
Conforms to national and international standards including ISO, ASTM and NACE
