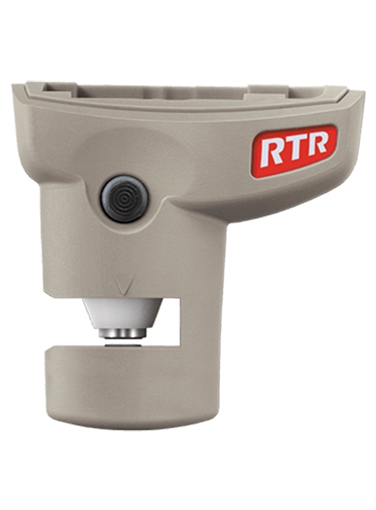

DeFelsko PRBRTRH PosiTector RTR Replica Tape Reader Probe Only
The DeFelsko PRBRTRH PosiTector RTR Replica Tape Reader Probe Only is used to measure and record surface profile parameters using Testex Press-O-Film replica tape.
Probe Only - Display Sold Separately Ready to measure no calibration adjustment required for most applications Produces a more accurate peak-to-valley height measurement Solvent, acid, oil, water, and dust resistant weatherproof PosiTector interchangeable platform attach any PosiTector probe to a single gage body Certificate of Calibration showing traceability to PTB included (Long Form) Conforms to ASTM D4417, ISO 8503-5, NACE RP287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T and others
Manufacturer
DeFelsko
Warrant
Two Years
Measurement Range
20 to 115 µm (0.8 to 4.5 mils)
Accuracy (H)
± 5 µm (± 0.2 mils)
Resolution
± 1 µm (± 0.2 mils)
Anvil Pressure
110 grams-force (1.1 Newtons)
Dimensions
152 mm x 61 mm x 28 mm (6" x 2.4" x 1.1")
Weight
140 g (4.9 oz.) without batteries
More Information
Product Specifications
Manufacturer
DeFelsko
Warrant
Two Years
Measurement Range
20 to 115 µm (0.8 to 4.5 mils)
Accuracy (H)
± 5 µm (± 0.2 mils)
Resolution
± 1 µm (± 0.2 mils)
Anvil Pressure
110 grams-force (1.1 Newtons)
Dimensions
152 mm x 61 mm x 28 mm (6" x 2.4" x 1.1")
Weight
140 g (4.9 oz.) without batteries
Product Features
Probe Only - Display Sold Separately Ready to measure no calibration adjustment required for most applications Produces a more accurate peak-to-valley height measurement Solvent, acid, oil, water, and dust resistant weatherproof PosiTector interchangeable platform attach any PosiTector probe to a single gage body Certificate of Calibration showing traceability to PTB included (Long Form) Conforms to ASTM D4417, ISO 8503-5, NACE RP287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T and others
