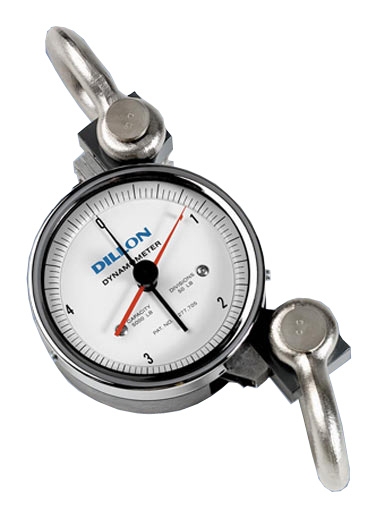

The Dillon AP Mechanical Dynamometer is a precision instrument that exhibits limitless versatility as a tension, traction and weight measuring instrument. The core of the device is a steel flexing beam. The enclosure is a heavy aluminum alloy case with baked on protective finish. The dial face is sealed and cushioned with a rubber gasket. Dillon AP Mechanical Dynamometer is available in capacities from 500 to 100,000 pounds, 200 to 50,000 kilograms, 2,000 to 500,000 Newtons.
Long life - The core of the device is a steel flexing beam. The enclosure is a heavy aluminum alloy case with baked on protective finish. The dial face is sealed and cushioned with a rubber gasket.
Safe for overhead applications - Most models have a 5:1 ultimate safety factor.
Zero control - Use it like a tare. It can cancel preset load values up to 20% of device capacity.
Largest safety factor for overload protection and long life.
No batteries required.
Dial size choice for best in portability or visibility.
Anti-parallax dial and pointer produce accurate readings from any perspective.
Maximum hand retains peak load point and is easily reset.
High strength case resists heavy blows.
Generous shackle openings mate with most hooks an hardware.
High specification materials on all load components. Heat treated to tight tolerances.
5" (125 mm) diameter AP dynamometer includes a rugged ABS plastic carry case with die-cut foam inserts. Capacities of 30,000 lb (15,000 kg) and above are shipped in a heavy-duty reinforced plywood crate. An optional steel carry case is available for 10" (250 mm) diameter dynamometers up to 20,000 lb (10,000 kg) capacity.
5" (125 mm) diameter AP dynamometer includes a rugged ABS plastic carry case with die-cut foam inserts. Capacities of 30,000 lb (15,000 kg) and above are shipped in a heavy-duty reinforced plywood crate. An optional steel carry case is available for 10" (250 mm) diameter dynamometers up to 20,000 lb (10,000 kg) capacity.
Product Features
For tension, traction and weight measurement.
Long life - The core of the device is a steel flexing beam. The enclosure is a heavy aluminum alloy case with baked on protective finish. The dial face is sealed and cushioned with a rubber gasket.
Safe for overhead applications - Most models have a 5:1 ultimate safety factor.
Zero control - Use it like a tare. It can cancel preset load values up to 20% of device capacity.
Largest safety factor for overload protection and long life.
No batteries required.
Dial size choice for best in portability or visibility.
Anti-parallax dial and pointer produce accurate readings from any perspective.
Maximum hand retains peak load point and is easily reset.
High strength case resists heavy blows.
Generous shackle openings mate with most hooks an hardware.
High specification materials on all load components. Heat treated to tight tolerances.
