Horiba LAQUA PC1100-S # 3999960180 Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit
The Horiba LAQUA PC1100-S # 3999960180 Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit is developed as a durable meters offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.
Dual channel / display Automatic pH calibration up to 5 points using NIST, USA, or Custom pH buffers Switchable pH resolution - 0.1, 0.01, 0.001 pH Offset and slope display Automatic / Manual temperature compensation and temperature calibration function Automatic and manual conductivity calibration up to 4 points Adjustable reference temperature and temperature coefficient Selectable cell constant and measurement unit Conductivity and total dissolved solids (TDS) conversion Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl Two (2) salinity calibration curves: NaCl, Seawater Auto log data; Built-in memory can store up to 1000 data Real-time clock and date / time stamp Auto shut-off (programmable: 1 to 30 minutes) Auto-Hold / Auto-Stable measurement Calibration alarm (programmable: 1 to 400 days) Custom black and white static LCD RS232 and USB output for connecting to computer or printer Security (password setting) 2 years meter warranty
pH Range
-2.000 to 20.000 pH
Resolution
0.1, 0.01, 0.001 pH
Accuracy
± 0.003 pH
Calibration Points
Up to 5
Buffer Options
USA, NIST, Custom
ORP Range
± 2000 mV
Resolution
0.1 mV
Accuracy
± 0.2 mV
Conductivity Range
...µS/cm to 2000 mS/cm
Resolution
0.05% F.S.
Accuracy
±0.6% F.S.; ±1.5% F.S. > 18.0 mS/cm
Reference Temperature
15 to 30°C (adjustable)
Temperature Coefficient
0.00 to 10.00% (adjustable)
Cell Constant
0.1, 1.0, 10.0 (selectable)
Measurement Unit
?S/cm, mS/cm, S/m (selectable / auto-ranging)
Calibration Points
Up to 4 (Auto / Manual)
TDS Range
0.01 mg/L to 1000 g/L
Resolution
0.01 mg/L
Accuracy
±0.1% F.S.
Calibration Curves
EN27888, 442, Linear (0.40 to 1.00), NaCl
Resistivity Range
0.00 ?•cm to 200.0 M?•cm
Resolution
0.05% F.S.
Accuracy
±0.6% F.S.; ±1.5% F.S. > 1.80 M?•cm
Salinity Range
0.00 to 100.00 ppt / 0.000 to 10.000 %
Resolution
0.01 ppt / 0.001 %
Accuracy
±0.2% F.S.
Resolution
0.01 ppt / 0.001 %
Accuracy
±0.2% F.S.
Calibration Curves
NaCl / Seawater
Temperature Range
-30.0 to 130.0°C
Resolution
0.1°C
Accuracy
±0.4°C
Calibration Option
Yes
Memory Data
999
Auto Log Data
Yes
Real-time Clock
Yes
Date / Time Stamp
Yes
Auto-Shut Off
Yes (Programmable
Auto-Hold / Auto-Stable
Yes
Offset / Slope Display
Yes (Independent acid and alkaline slopes depending on calibration)
Electrode Status
On screen display
Diagnostic Messages
Yes
Calibration Alarm
Yes (Programmable
Display
Custom black and white static LCD, Dual Channel
Inputs
Dual BNC, dual phono, DC sockets
Output
RS232, USB
Power Requirement
AC adaptor, 100-240V, 50/60Hz
Weight
500g
Dimensions
170(L) x 174(D) x 73(H) mm

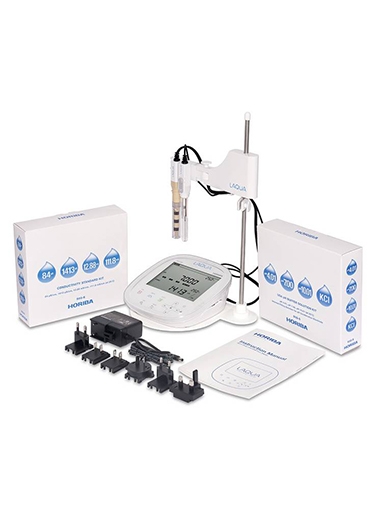

LAQUA PC1100-S Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS Meter 9615S-10D ToupH glass-body, refillable pH electrode with integrated temperature sensor 9382-10D plastic-body, titanium/platinum black, conductivity probe (k=1.0) with integrated temperature sensor 502-S USA pH buffers: 4.0, 7.00, 10.01 pH buffers & 3.33 M KCl (250ml each) 503-S Conductivity standards: 84 u00b5S/cm, 1413 u00b5S/cm, 12.88 mS/cm, 111.8 mS/cm (250ml each) Data acquisition software in USB flash drive (communication cable is sold separately) Integrated electrode stand Protection cover Power adaptor with 6 plugs (US, EU, UK, Australia / New Zealand, Korea, China) Instruction Manual
