Horiba LAQUA pH-1100-S # 3999960176 Benchtop pH / ORP / Temperature Meter Kit
The Horiba LAQUA pH-1100-S # 3999960176 Benchtop pH / ORP / Temperature Meter Kit is developed as a durable meter offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.
Automatic pH calibration up to 5 points using USA or NIST buffers Switchable pH resolutions - 0.1, 0.01 pH Offset and slope display Automatic / Manual temperature compensation Temperature calibration function Auto-Hold / Auto-Stable measurement Built-in memory can store up to 500 data Custom black and white static LCD RS232C output for connecting the meter to a compatible printer or computer Meter password setting 2 years meter warranty
pH Range
-2.00 to 20.00 pH
Resolution
0.1 / 0.01 pH
Accuracy
± 0.01 pH
Calibration Points
Up to 5
Buffer Options
USA / NIST
ORP Range
± 2000 mV
Resolution
0.1 mV
Accuracy
± 0.2 mV
Temperature Range
-30.0 to 130.0 °C
Resolution
0.1 °C
Accuracy
± 0.4 °C
Calibration Option
Yes
Memory Data
500
Auto-Hold / Auto-Stable
Yes
Offset / Slope Display
Yes (Independent acid and alkaline slopes depending on calibration)
Electrode Status
On screen display
Diagnostic Messages
Yes
Display
Custom black and white static LCD
Inputs
BNC, phono, DC sockets
Output
RS232C
Power Requirement
AC adaptor, 100-240V, 50/60Hz
Weight
500g
Dimensions
170(L) x 174(D) x 73(H) mm

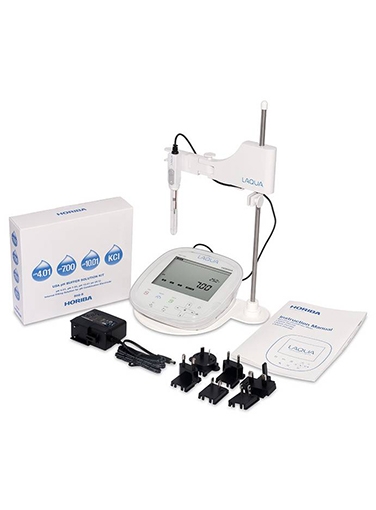

LAQUA pH-1100- Benchtop pH / ORP / Temperature Meter 9615S-10D ToupH glass-body, refillable pH electrode with integrated temperature sensor 502-S USA pH buffers: 4.01, 7.00, 10.01 pH buffers & 3.33 M KCl reference electrolyte (250ml each) Data acquisition software in USB flash drive (communication cable is sold separately) Integrated Electrode Stand Meter Cover Power adaptor with 6 plugs (US, EU, UK, Australia / New Zealand, Korea, China) Instruction Manual
More Information
Product Specifications
pH Range
-2.00 to 20.00 pH
Resolution
0.1 / 0.01 pH
Accuracy
± 0.01 pH
Calibration Points
Up to 5
Buffer Options
USA / NIST
ORP Range
± 2000 mV
Resolution
0.1 mV
Accuracy
± 0.2 mV
Temperature Range
-30.0 to 130.0 °C
Resolution
0.1 °C
Accuracy
± 0.4 °C
Calibration Option
Yes
Memory Data
500
Auto-Hold / Auto-Stable
Yes
Offset / Slope Display
Yes (Independent acid and alkaline slopes depending on calibration)
Electrode Status
On screen display
Diagnostic Messages
Yes
Display
Custom black and white static LCD
Inputs
BNC, phono, DC sockets
Output
RS232C
Power Requirement
AC adaptor, 100-240V, 50/60Hz
Weight
500g
Dimensions
170(L) x 174(D) x 73(H) mm
Product Features
Automatic pH calibration up to 5 points using USA or NIST buffers Switchable pH resolutions - 0.1, 0.01 pH Offset and slope display Automatic / Manual temperature compensation Temperature calibration function Auto-Hold / Auto-Stable measurement Built-in memory can store up to 500 data Custom black and white static LCD RS232C output for connecting the meter to a compatible printer or computer Meter password setting 2 years meter warranty
