Horiba LAQUA pH-1300 # 3200647409 Benchtop pH / ORP / Ion / Temperature Meter
The Horiba LAQUA pH-1300 # 3200647409 Benchtop pH / ORP / Ion / Temperature Meter is developed as a durable meters offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.
Automatic pH calibration up to 5 points using USA, NIST, or Custom buffers Switchable pH resolutions - 0.1, 0.01, 0.001 pH Offset and slope display Automatic / Manual temperature compensation Temperature calibration function Auto-Hold / Auto-Stable measurement Auto log data Built-in memory can store up to 999 data Real-time clock Date / time stamping Auto shut-off (programmable: 1 to 30 minutes) Calibration alarm (programmable: 1 to 400 days) Custom black and white static LCD RS232C and USB outputs for connecting the meter to a compatible printer or computer Meter password setting 2 years meter warranty
pH Range
-2.000 to 20.000 pH
Resolution
0.1 / 0.01 / 0.001 pH
Accuracy
± 0.003 pH
Calibration Points
Up to 5
Buffer Options
USA / NIST / Custom
ORP Range
± 2000 mV
Resolution
0.1 mV
Accuracy
± 0.2 mV
Ion Range
0.000 µg/L to 9999 g/L
Resolution
4 significant digits
Accuracy
± 0.3% of full scale
Calibration Points
Up to 5
Temperature Range
-30.0 to 130.0 °C
Resolution
0.1 °C
Accuracy
± 0.4 °C
Calibration Option
Yes
Memory Data
999
Auto Log Data
Yes
Real-time Clock
Yes
Date / Time Stamp
Yes
Auto-Shut Off
Yes (Programmable
Auto-Hold / Auto-Stable
Yes
Offset / Slope Display
Yes (Independent acid and alkaline slopes depending on calibration)
Electrode Status
On screen display
Diagnostic Messages
Yes
Calibration Alarm
Yes (Programmable
Display
Custom black and white static LCD
Inputs
BNC, phono, DC sockets
Output
RS232C, USB
Power Requirement
AC adaptor, 100-240V, 50/60Hz
Weight
500g
Dimensions
170(L) x 174(D) x 73(H) mm

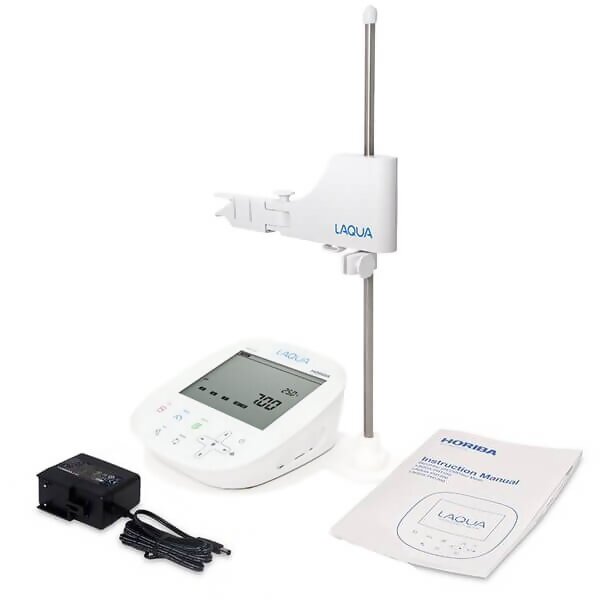

Horiba LAQUA pH-1300 Benchtop pH / ORP / Ion / Temperature Meter Integrated Electrode Stand Meter Cover AC Power Adaptor Instruction Manual
More Information
Product Specifications
pH Range
-2.000 to 20.000 pH
Resolution
0.1 / 0.01 / 0.001 pH
Accuracy
± 0.003 pH
Calibration Points
Up to 5
Buffer Options
USA / NIST / Custom
ORP Range
± 2000 mV
Resolution
0.1 mV
Accuracy
± 0.2 mV
Ion Range
0.000 µg/L to 9999 g/L
Resolution
4 significant digits
Accuracy
± 0.3% of full scale
Calibration Points
Up to 5
Temperature Range
-30.0 to 130.0 °C
Resolution
0.1 °C
Accuracy
± 0.4 °C
Calibration Option
Yes
Memory Data
999
Auto Log Data
Yes
Real-time Clock
Yes
Date / Time Stamp
Yes
Auto-Shut Off
Yes (Programmable
Auto-Hold / Auto-Stable
Yes
Offset / Slope Display
Yes (Independent acid and alkaline slopes depending on calibration)
Electrode Status
On screen display
Diagnostic Messages
Yes
Calibration Alarm
Yes (Programmable
Display
Custom black and white static LCD
Inputs
BNC, phono, DC sockets
Output
RS232C, USB
Power Requirement
AC adaptor, 100-240V, 50/60Hz
Weight
500g
Dimensions
170(L) x 174(D) x 73(H) mm
Product Features
Automatic pH calibration up to 5 points using USA, NIST, or Custom buffers Switchable pH resolutions - 0.1, 0.01, 0.001 pH Offset and slope display Automatic / Manual temperature compensation Temperature calibration function Auto-Hold / Auto-Stable measurement Auto log data Built-in memory can store up to 999 data Real-time clock Date / time stamping Auto shut-off (programmable: 1 to 30 minutes) Calibration alarm (programmable: 1 to 400 days) Custom black and white static LCD RS232C and USB outputs for connecting the meter to a compatible printer or computer Meter password setting 2 years meter warranty
