Horiba LAQUAact EC-110K Portable Water Quality Conductivity / Salinity / TDS Meter Kit 3999960170
The Horiba LAQUAact EC-110K Portable Water Quality Conductivity / Salinity / TDS Meter Kit 3999960170 is designed for use with one hand and with an IP67 waterproof rating and shock-resistant casing. The EC-110 meter can be used for long periods, even in dark places, making it ideal for field measurements in rivers and lakes.
Automatic/ manual conductivity calibration up to 4 points Adjustablereference temperatureandtemperature coefficient Selectablecell constantand measurement unit Automatic / manual temperature compensation Temperature calibration function Resistivityand total dissolved solids (TDS) conversions from conductivity Four TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl Built-in memory can store up to 100 data Auto shut-off (programmable: 1 to 30 minutes) Auto-Hold / Auto-Stable measurement Large LCD: 52mm x 64mm Poweredby 2 x AAA batteries (LR03) or Ni-MH rechargeable batteries or power adaptor IP67-rated case:waterproof (withstand 30 mins. immersion in 1m depth of water)and dustproof Packaged in new molded carrying case 2 years meter warranty
Conductivity (EC) Range
0.000 µS/cm to 20.00 mS/cm (k=0.1) | 0.00 µS/cm to 200.0 mS/cm (k=1) | 0.0 µS/cm to 2.000 S/cm (k=10)
Resolution
0.05% of full scale
Accuracy
± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm
Reference Temperature
15 to 30 °C (Adjustable)
Temperature Coefficient
0.00 to 10.00 % (Adjustable)
Cell Constant
0.1 / 1.0 / 10.0 (Selectable)
Measurement Unit
?S/cm, mS/cm, S/m (Auto-ranging / Manual)
Calibration Points
Up to 4 (Auto / Manual)
TDS Range
0.00 mg/L to 100 g/L (TDS factor=0.40 to 1.00)
Resolution
0.01 mg/L
Accuracy
± 0.1% of full scale
Calibration Curves
EN27888 / 442 / Linear / NaCl
Resistivity Range
0.0 ?•cm to 2.000 M?•cm (k=10) | 0.000 k?•cm to 20.00 M?•cm (k=1) | 0.00 k?•cm to 200.0 M?•cm (k=0.1)
Resolution
0.05% of full scale
Accuracy
± 0.6% of full scale; ± 1.5% of full scale > 1.80 M?•cm
Temperature Range
-30.0 to 130.0 °C
Resolution
0.1 °C
Accuracy
± 0.4 °C
Calibration Option
Yes
Memory Data
100
Auto-Shut Off
Yes (Programmable
Auto-Hold / Auto-Stable
Yes
Cell Constant Display
Yes
Electrode Status
On screen display
Diagnostic Messages
Yes
Display
Custom LCD
Inputs
BNC, phono, DC sockets
IP Rating
IP67, shock-resistant
Power Requirements
2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Battery Life
> 200 hours

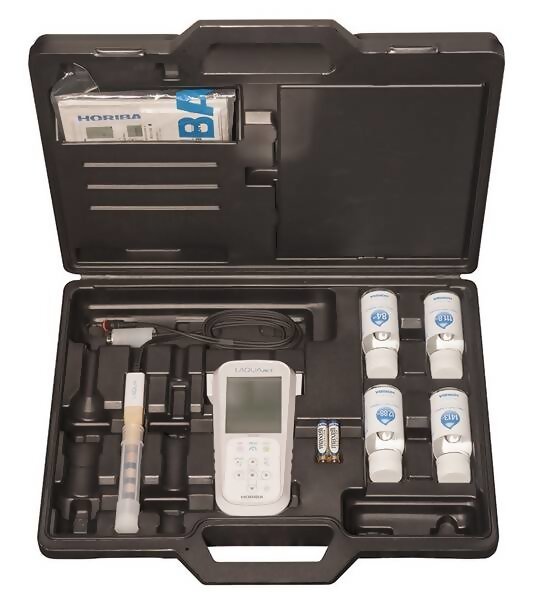

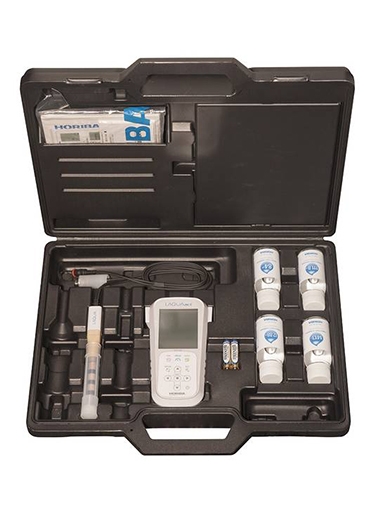

Horiba LAQUAact EC-110K Portable Water Quality Conductivity Meter Kit 9382-10D plastic-body, titanium/platinum black conductivity probe (k=1.0) with integrated temperature sensor 84 u00b5S/cm, 1413 u00b5S/cm, 12.88 mS/cm, 111.8 mS/cm conductivity standard solutions (60ml each) Instruction Manual Caring Case
More Information
Product Specifications
Conductivity (EC) Range
0.000 µS/cm to 20.00 mS/cm (k=0.1) | 0.00 µS/cm to 200.0 mS/cm (k=1) | 0.0 µS/cm to 2.000 S/cm (k=10)
Resolution
0.05% of full scale
Accuracy
± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm
Reference Temperature
15 to 30 °C (Adjustable)
Temperature Coefficient
0.00 to 10.00 % (Adjustable)
Cell Constant
0.1 / 1.0 / 10.0 (Selectable)
Measurement Unit
?S/cm, mS/cm, S/m (Auto-ranging / Manual)
Calibration Points
Up to 4 (Auto / Manual)
TDS Range
0.00 mg/L to 100 g/L (TDS factor=0.40 to 1.00)
Resolution
0.01 mg/L
Accuracy
± 0.1% of full scale
Calibration Curves
EN27888 / 442 / Linear / NaCl
Resistivity Range
0.0 ?•cm to 2.000 M?•cm (k=10) | 0.000 k?•cm to 20.00 M?•cm (k=1) | 0.00 k?•cm to 200.0 M?•cm (k=0.1)
Resolution
0.05% of full scale
Accuracy
± 0.6% of full scale; ± 1.5% of full scale > 1.80 M?•cm
Temperature Range
-30.0 to 130.0 °C
Resolution
0.1 °C
Accuracy
± 0.4 °C
Calibration Option
Yes
Memory Data
100
Auto-Shut Off
Yes (Programmable
Auto-Hold / Auto-Stable
Yes
Cell Constant Display
Yes
Electrode Status
On screen display
Diagnostic Messages
Yes
Display
Custom LCD
Inputs
BNC, phono, DC sockets
IP Rating
IP67, shock-resistant
Power Requirements
2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Battery Life
> 200 hours
Product Features
Automatic/ manual conductivity calibration up to 4 points Adjustablereference temperatureandtemperature coefficient Selectablecell constantand measurement unit Automatic / manual temperature compensation Temperature calibration function Resistivityand total dissolved solids (TDS) conversions from conductivity Four TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl Built-in memory can store up to 100 data Auto shut-off (programmable: 1 to 30 minutes) Auto-Hold / Auto-Stable measurement Large LCD: 52mm x 64mm Poweredby 2 x AAA batteries (LR03) or Ni-MH rechargeable batteries or power adaptor IP67-rated case:waterproof (withstand 30 mins. immersion in 1m depth of water)and dustproof Packaged in new molded carrying case 2 years meter warranty
