Mark-10 EKM5-200 Myometer Kit Series EKM5

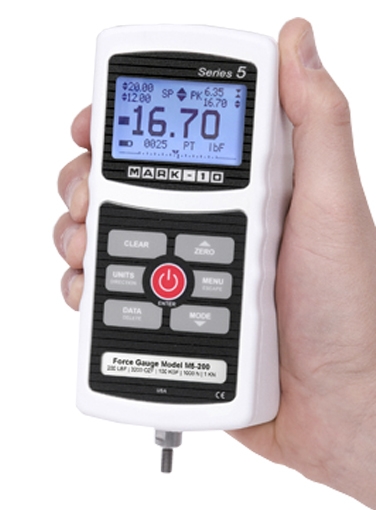

The Mark-10 EKM5-200 Myometer Kit Series EKM5 is used to measure real time, average, and peak pull and push forces. The Mark-10 EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals.
Measures real time, average, and peak pull and push forces 200 lbF (1,000 N) force capacity Accuracy of 0.1% of full scale Sampling rate of 7,000 Hz USB, RS-232, and analog outputs High / low limit indicators, for pass / fail and minimum force testing 1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR Lite data collection software. Force gauge is compatible with other Mark-10 grips and attachments
Accuracy
±0.1% of full scale
Sampling rate
7,000 Hz
Power
Backlight on
Battery life
Backlight on
Capacity x Resolution
200 x 0.05 lbF, 3200 x 1 ozF, 100 x 0.02 kgF, 1000 x 0.2 N, 1 x 0.0002 kN
Outputs
USB / RS-232
Safe overload
200% of full scale (display shows "OVER" at 110% and above)
Warranty
3 years (see individual statement for further details)

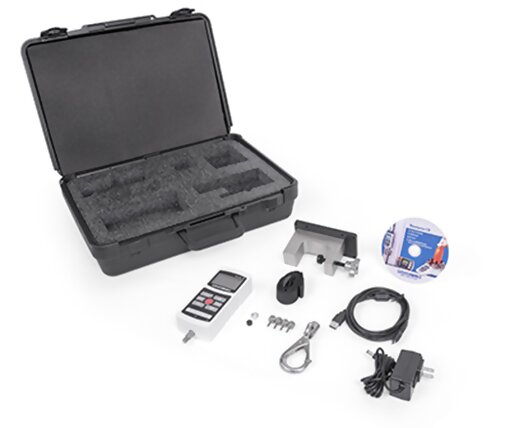

Mark-10 Myometer Kit Series EKM5 Tabletop mounting kit for force gauge, for vertical or horizontal orientations Adjustable length looped strap Clevis and clasp hook attachments AC adapter/charger MESURu00ae Lite data collection software USB cable NIST-traceable certificate of calibration with data Carrying Case
More Information
Product Specifications
Accuracy
±0.1% of full scale
Sampling rate
7,000 Hz
Power
Backlight on
Battery life
Backlight on
Capacity x Resolution
200 x 0.05 lbF, 3200 x 1 ozF, 100 x 0.02 kgF, 1000 x 0.2 N, 1 x 0.0002 kN
Outputs
USB / RS-232
Safe overload
200% of full scale (display shows "OVER" at 110% and above)
Warranty
3 years (see individual statement for further details)
Product Features
Measures real time, average, and peak pull and push forces 200 lbF (1,000 N) force capacity Accuracy of 0.1% of full scale Sampling rate of 7,000 Hz USB, RS-232, and analog outputs High / low limit indicators, for pass / fail and minimum force testing 1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR Lite data collection software. Force gauge is compatible with other Mark-10 grips and attachments
