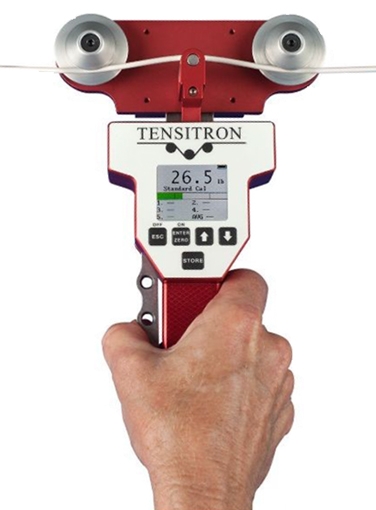

The Tensitron LX-250-W-1 Digital Tension Meters for Medium-sized Wires and Cables, Range 5-250 Lbs, Copper Wire 11-16 AWG or Other Materials is used to measure tension on materials less than 5/32" in diameter. The LX-1 measures tension(s) on slightly larger, flexible cables, wires, filaments, tapes and ribbons where expected tensions range from 5 - 250 Lbs, or 25-500 Lbs
The LX-1 Digital Wire Tension Meters is used to measure tension on materials less than 5/32" in diameter. The LX-1 measures tension(s) on slightly larger, flexible cables, wires, filaments, tapes and ribbons where expected tensions range from 5 - 250 Lbs, or 25-500 Lbs
Large, easy to read backlit, color display with adjustable backlighting.
Display shows tension, description of material selected, dynamic color bar graph indicating changing tensions (Amber = tension too low, Green = correct tension range and red= over range), the previous 5 tension readings along with their average and the battery charge level
Select tension values to display in Lbs., daN or KG
Depress the Store button to record and average your previous five readings along with their average
Data Logging Feature. Select either Continuous or Single Point data logging mode and record tension values to the instruments memory.
Data Statistics: Monitor your process by viewing count, average and standard deviation values of your logged data.
Data Averaging: Use this feature to adjust the stability of your displayed, tension readings. This feature allows the user to select the duration the instrument takes tension readings over and posting that average to the display. Options are: 1, 2, 5 and 10 seconds. This is a rolling average, meaning that only the readings taken in the last 1, 2, 5 or 10 seconds (your choice) will be averaged and displayed.
Up to 10 additional custom calibrations may be programmed into the instrument
Extremely accurate custom calibration procedure employing up to a 10-point multilinearization procedure.
All calibrations are password protected
Adjustable LCD refresh rates allowing for stable, digital readouts
Automatic shutoff after several minutes of non-use
Instruments may be operated continuously while connected to power supply
Set-Point feature allowing user to define high and low point specifications which are then shown on the main display as an active, color changing bar graph.
Rechargeable NiMH batteries with power supply provided. Approximately 12 hours of continuous use depending upon backlighting intensity.
Power supply operates with input voltages from 100 240V and includes several, interchangeable adapters allowing use with European, Australian, US, English and other plug configurations.
Optional features including: Analog Output and Serial Output
All models typically available from stock
Includes easy to use, cable diameter gage to accurately determine correct cable size
Numerous application specific models available
Durable, lightweight carrying case with protective foam inserts
All instruments factory-calibrated and ready for use. Calibration certificate included and all calibration values traceable to National Standards
