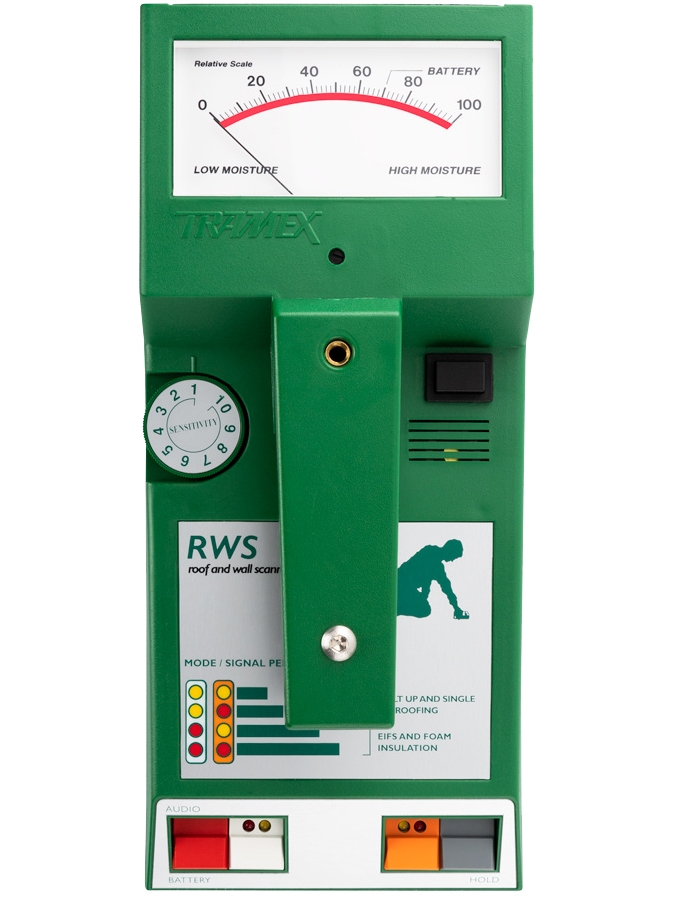

The Tramex RWS Roof Moisture Meter and Wet Wall Scanner is a multi-mode non-invasive impedance scanner designed for the instant, precise and non-destructive evaluation of moisture conditions and leak tracing in roofing per ASTM D7954 and in wall systems of the building envelope. The Roof & Wall Scanner detects and evaluates the moisture conditions within roofing and wall systems by non-destructively measuring the electrical impedance. A low frequency electronic signal is transmitted into the material under test via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the amount of moisture in the material under test. The Tramex RWS Roof & Wall Scanner determines the strength of the current and converts this to a comparative moisture content value, displaying it on a large clear analog dial. Operating procedure: Moisture detection testing can be done at the time of installation, as part of an ongoing maintenance program, or prior to reparation of damaged roofing and wall systems. The RWS is a handheld, hardwearing instrument with dual operating modes for roofing and EIFS/Foam insulation systems, each with two ranges of signal penetration. Having calibrated the RWS on a known acceptably dry area, the RWS gives instant readings for the moisture survey.
Tramex RWS Roof and Wall Scanner Moisture Meter (Combined Leak Seeker for Roofing & Wet Wall Detector for EIFS)
For non-destructive moisture evaluation of Roofs, EIFS, foam insulation systems & other building envelope applications
To evaluate the extent of the moisture problem and help trace and pin-point its source
Multi-mode functions allowing for depth penetration and sensitivity selection
The RWS incorporates two of the best known Tramex moisture scanners, the Leak Seeker for Roofing and the Wet Wall Detector for EIFS to give all the benefits and features of both of these time-proven instruments
Hold function facilitates ease of record readings
Lightweight, handheld and battery operated. Fast and easy to operate giving instant clear readings.
Four ranges of sensitivity up to a maximum depth of 4" (10 cm)
Display
Analog
Size
6" x 3.5" x 1.5"
Construction
ABS Body
Power
9 volt PP3 Battery
Warranty
One Year
Industry
Commercial roofing, EIFS, Water Restoration, Pest Control, Inspection/Surveying
Material
BUR, non-conductive single ply roof membranes, Modified bitumen and polyurethane foam roofing systems and EIFS (Exterior Insulation and Finishing System).
Four ranges of sensitivity up to a maximum depth of 4" (10 cm)
Display
Analog
Size
6" x 3.5" x 1.5"
Construction
ABS Body
Power
9 volt PP3 Battery
Warranty
One Year
Industry
Commercial roofing, EIFS, Water Restoration, Pest Control, Inspection/Surveying
Material
BUR, non-conductive single ply roof membranes, Modified bitumen and polyurethane foam roofing systems and EIFS (Exterior Insulation and Finishing System).
Product Features
Tramex RWS Roof and Wall Scanner Moisture Meter (Combined Leak Seeker for Roofing & Wet Wall Detector for EIFS)
For non-destructive moisture evaluation of Roofs, EIFS, foam insulation systems & other building envelope applications
To evaluate the extent of the moisture problem and help trace and pin-point its source
Multi-mode functions allowing for depth penetration and sensitivity selection
The RWS incorporates two of the best known Tramex moisture scanners, the Leak Seeker for Roofing and the Wet Wall Detector for EIFS to give all the benefits and features of both of these time-proven instruments
Hold function facilitates ease of record readings
Lightweight, handheld and battery operated. Fast and easy to operate giving instant clear readings.
