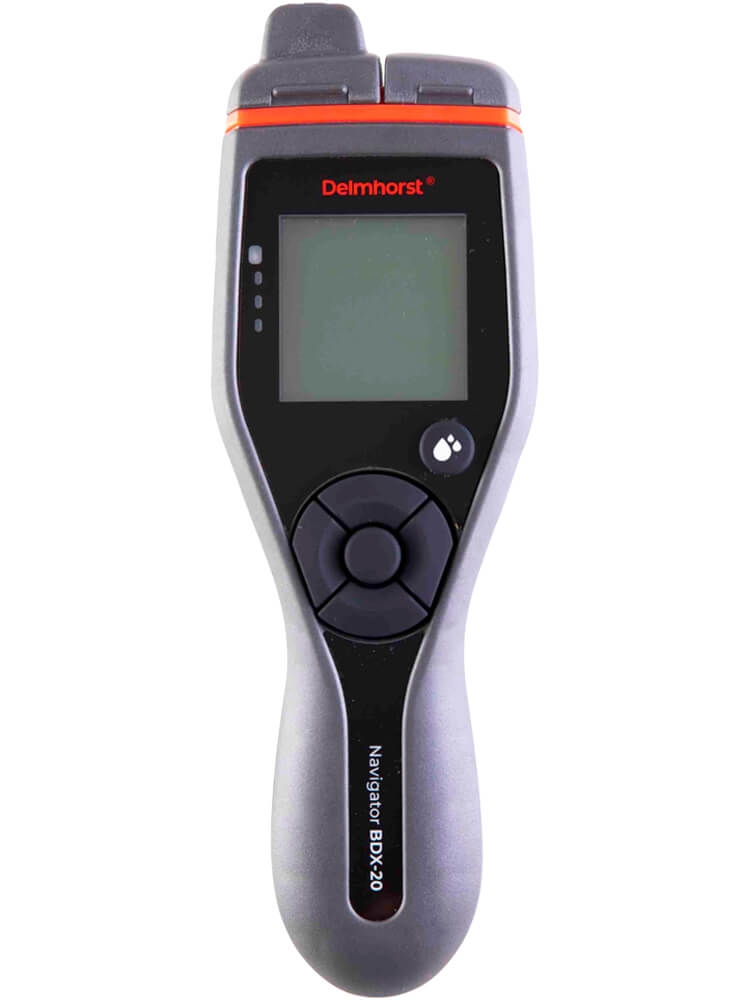

Delmhorst BDX-20/P01 Pin-Type Moisture Meter for Building Inspection, P01 – Behind the Wall Package
The Delmhorst BDX-20/P01 Pin-Type Moisture Meter for Building Inspection, P01 – Behind the Wall Package is the newest in the legendary BD Series pin meters for the building trades. This rugged meter has an ergonomic design with an easy grip handle and large tactile buttons for comfort and usability. Equipped with a custom, LCD display and intuitive user interface, users can quickly obtain accurate readings. The BDX-20 will ensure maximum performance and reliability on every job.
- Large, custom display with auto backlight - easy to read under all conditions.
- 3 measurement scales: 6%-60% Wood (Douglas Fir) 0.1% -6% Drywall 0-100 Reference scale
- Wood temperature correction (F/C)
- Alarm set point - alerts to user-selected MC level
- On-screen readings statistics High, Low, Average, Standard Deviation, Last 10
- Internal calibration check
- Pins/electrode correction (insulated or non-insulated)
- Integral contact pins max 5/16 penetration (use 2498/A-100)
- Compatible with any Delmhorst external electrode.
- Auto off timer. Set to 1m, 4m or 10m
- QR code on meter for easy access to support materials
- Size: meter only - 8.65in (2.2mm) x 2.85in (72mm) x 1.55in (39mm); in carry case - 9.5in (241mm) x 6.5in (165mm) x 2.5in (64mm)
- Weight: meter only - 0.4.5oz (1.3g); in carry case - 18oz (510g)
- 2-year warranty on manufacturers defects. Bonus extended warranty with on-line registration.
|
 |
