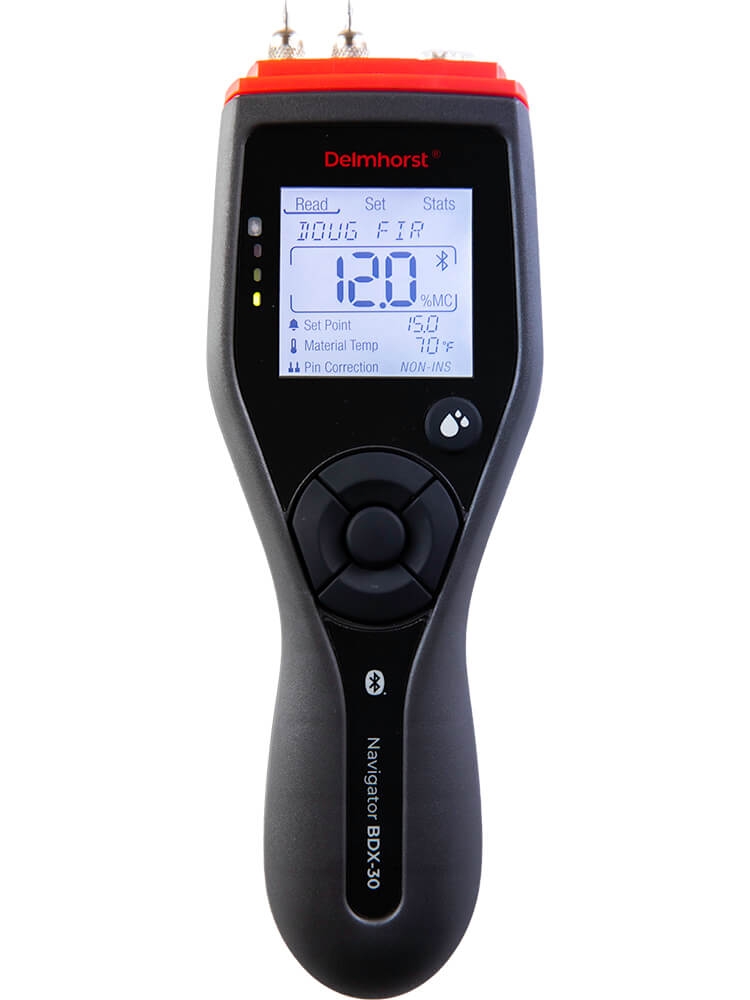

Delmhorst BDX-30w/CS Pin-Type Moisture Meter for Building Inspection, Individual Instrument
The Delmhorst BDX-30w/CS Pin-Type Moisture Meter for Building Inspection, Individual Instrument is the newest in the legendary BD Series pin meters for the building trades. This rugged meter has an ergonomic design with an easy grip handle and large tactile buttons for comfort and usability. Equipped with a custom, LCD display and intuitive user interface, users can quickly obtain accurate readings. The BDX-30 will ensure maximum performance and reliability on every job. The BDX-30 introduces Bluetooth integration to the Navigator family with the Delmhorst EDGE app! This exciting addition to the meter enhances your ability to ensure precise readings from anywhere and export data including geotags and timestamps. The BDX-30 brings today’s technology from the field to the office, making the most challenging project easier, more efficient, and most accurate
- Delmhorst EDGE app with Bluetooth connectivity
- Large, custom display with auto backlight - easy to read under all conditions.
- Species/Materials download up to 15 into the meter out of 37 available
- MC range: 6%-60% Wood (Douglas Fir) 0.1% -6% Drywall 0-100 Reference scale
- Wood temperature correction (F/C)
- Alarm set point - alerts to user-selected MC level
- On-screen readings statistics High, Low, Average, Standard Deviation, Last 10
- Internal calibration check
- Pins/electrode correction (insulated or non-insulated)
- Integral contact pins max 5/16 penetration (use 2498/A-100)
- Compatible with any Delmhorst external electrode.
- Color-coded LEDs adjustable through EDGE app
- Multi-language - available fall 2021
- Sturdy plastic carrying case included
- Power 2x AA batteries Alkaline Energizer included
- Low Batt warning with audio
- Auto off timer. Set to 1m, 4m or 10m
- QR code on meter for easy access to support materials
- Size: meter only - 8.65in (2.2mm) x 2.85in (72mm) x 1.55in (39mm); in carry case - 9.5in (241mm) x 6.5in (165mm) x 2.5in (64mm)
- Weight: meter only - 0.4.5oz (1.3g); in carry case - 18oz (510g)
- 2-year warranty on manufacturers defects. Bonus extended warranty with on-line registration.
|
 |
