Horiba LAQUA EC1100-S # 3999960179 Benchtop Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit
The Horiba LAQUA EC1100-S # 3999960179 Benchtop Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit is developed as a durable meter offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.
Automatic and manual conductivity calibration up to 4 points Adjustable reference temperature and temperature coefficient Selectable cell constant and measurement unit Automatic / Manual temperature compensation and temperature calibration function Conductivity and total dissolved solids (TDS) conversion Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl Two (2) salinity calibration curves: NaCl, Seawater Built-in memory can store up to 500 data Auto-Hold / Auto-Stable measurement RS232 and USB outputs for connecting the meter to a printer or computer Security (password setting) 2 years meter warranty
Condutivity Range
...µS/cm to 2000 mS/cm
Resolution
0.05% F.S.
Accuracy
±0.6% F.S.; ±1.5% F.S. > 18.0 mS/cm
Reference Temperature
15 to 30 °C (adjustable)
Temperature Coefficient
0.00 to 10.00% (adjustable)
Cell Constant
0.1, 1.0, 10.0 (selectable)
Measurement Unit
?S/cm, mS/cm, S/m (selectable / auto-ranging)
Calibration Points
Up to 4 (Auto / Manual)
TDS Range
0.01 mg/L to 1000 g/L
Resolution
0.01 mg/L
Accuracy
±0.1% F.S.
Calibration Curves
EN27888, 442, Linear (0.40 to 1.00), NaCl
Resistivity Range
0.00 ?•cm to 200.0 M?•cm
Resolution
0.05% F.S.
Accuracy
±0.6% F.S.; ±1.5% F.S. > 1.80 M?•cm
Salinity Range
0.00 to 100.00 ppt / 0.000 to 10.000 %
Resolution
0.01 ppt / 0.001%
Accuracy
±0.2% F.S.
Calibration Curves
NaCl / Seawater
Temperature Range
-30.0 to 130.0°C
Resolution
0.1°C
Accuracy
± 0.4°C
Calibration Option
Yes
Memory Data
500
Auto-Hold / Auto-Stable
Yes
Cell Constant Display
Yes
Electrode Status
On screen display
Diagnostic Messages
Yes
Display
Custom black and white static LCD
Inputs
BNC, phono, DC sockets
Output
RS232, USB
Power Requirement
AC adaptor, 100-240V, 50/60Hz
Weight
500g
Dimensions
170(L) x 174(D) x 73(H) mm

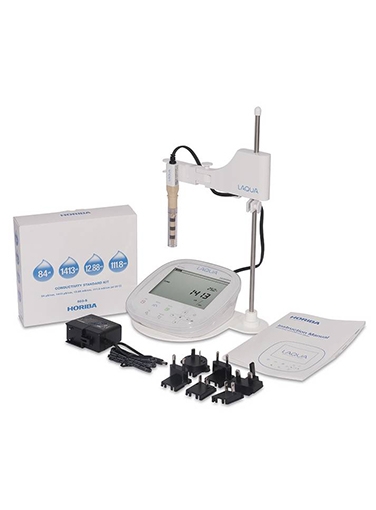

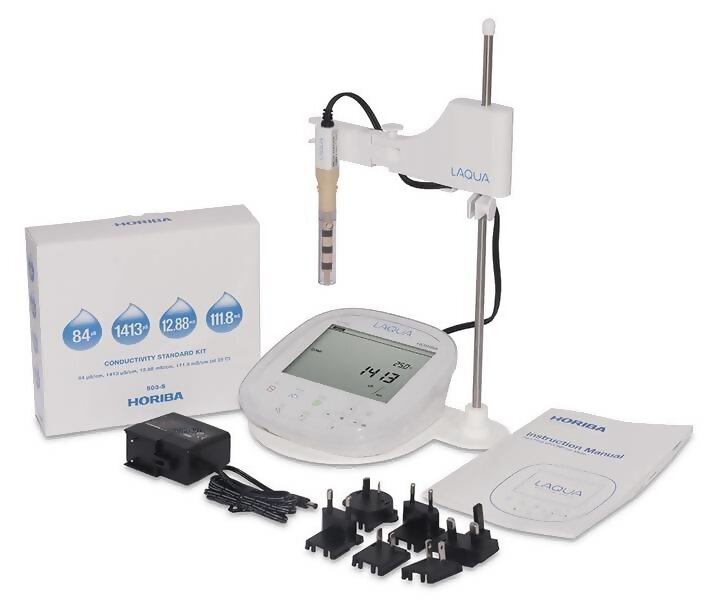

LAQUA LAQUA EC1100-S Conductivity / Resistivity / Salinity / TDS Meter Kit 9382-10D Plastic-body, Titanium/platinum black conductivity probe (k=1.0) wth integrated temperature sensor 503-S Conductivity Standards: 84 uS/cm, 1413 uS/cm, 12.88 mS/cm, 111.8 mS/cm (250ml each) Data acquisition software in USB flash drive (communication cable is sold separately) Integrated electrode stand Protection cover Power adaptor with 6 plugs (US, EU, UK, Australia / New Zealand, Korea, China) Instruction Manual
More Information
Product Specifications
Condutivity Range
...µS/cm to 2000 mS/cm
Resolution
0.05% F.S.
Accuracy
±0.6% F.S.; ±1.5% F.S. > 18.0 mS/cm
Reference Temperature
15 to 30 °C (adjustable)
Temperature Coefficient
0.00 to 10.00% (adjustable)
Cell Constant
0.1, 1.0, 10.0 (selectable)
Measurement Unit
?S/cm, mS/cm, S/m (selectable / auto-ranging)
Calibration Points
Up to 4 (Auto / Manual)
TDS Range
0.01 mg/L to 1000 g/L
Resolution
0.01 mg/L
Accuracy
±0.1% F.S.
Calibration Curves
EN27888, 442, Linear (0.40 to 1.00), NaCl
Resistivity Range
0.00 ?•cm to 200.0 M?•cm
Resolution
0.05% F.S.
Accuracy
±0.6% F.S.; ±1.5% F.S. > 1.80 M?•cm
Salinity Range
0.00 to 100.00 ppt / 0.000 to 10.000 %
Resolution
0.01 ppt / 0.001%
Accuracy
±0.2% F.S.
Calibration Curves
NaCl / Seawater
Temperature Range
-30.0 to 130.0°C
Resolution
0.1°C
Accuracy
± 0.4°C
Calibration Option
Yes
Memory Data
500
Auto-Hold / Auto-Stable
Yes
Cell Constant Display
Yes
Electrode Status
On screen display
Diagnostic Messages
Yes
Display
Custom black and white static LCD
Inputs
BNC, phono, DC sockets
Output
RS232, USB
Power Requirement
AC adaptor, 100-240V, 50/60Hz
Weight
500g
Dimensions
170(L) x 174(D) x 73(H) mm
Product Features
Automatic and manual conductivity calibration up to 4 points Adjustable reference temperature and temperature coefficient Selectable cell constant and measurement unit Automatic / Manual temperature compensation and temperature calibration function Conductivity and total dissolved solids (TDS) conversion Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl Two (2) salinity calibration curves: NaCl, Seawater Built-in memory can store up to 500 data Auto-Hold / Auto-Stable measurement RS232 and USB outputs for connecting the meter to a printer or computer Security (password setting) 2 years meter warranty
